Original price was: $157.26.$97.99Current price is: $97.99.
70A Unmetered Power Panel for recreational vehicle park power
2-Space 2-Circuit includes circuit breakers
Stay open position on door
- Get the quality you deserve, for less.
- Safe and Secure Payments, Always
- Shop the Best Quality Online
- The quality you expect, the service you deserve.

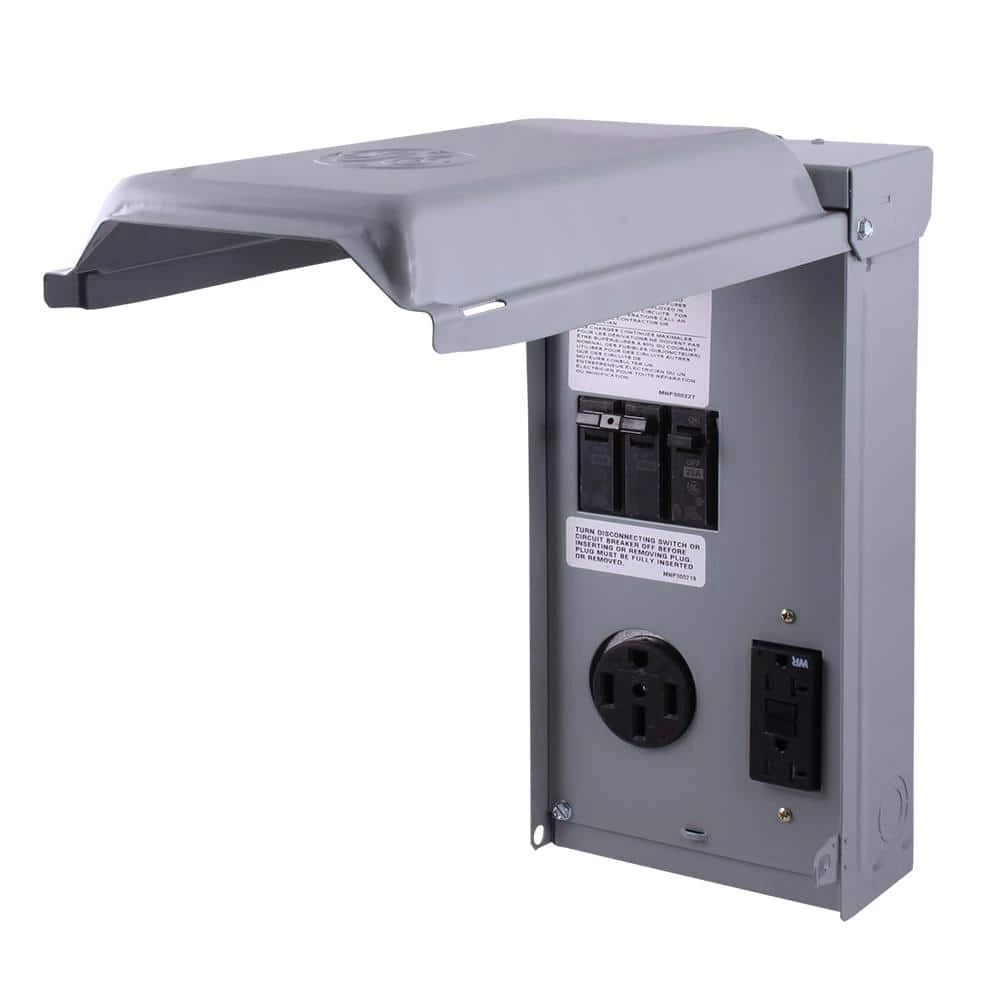

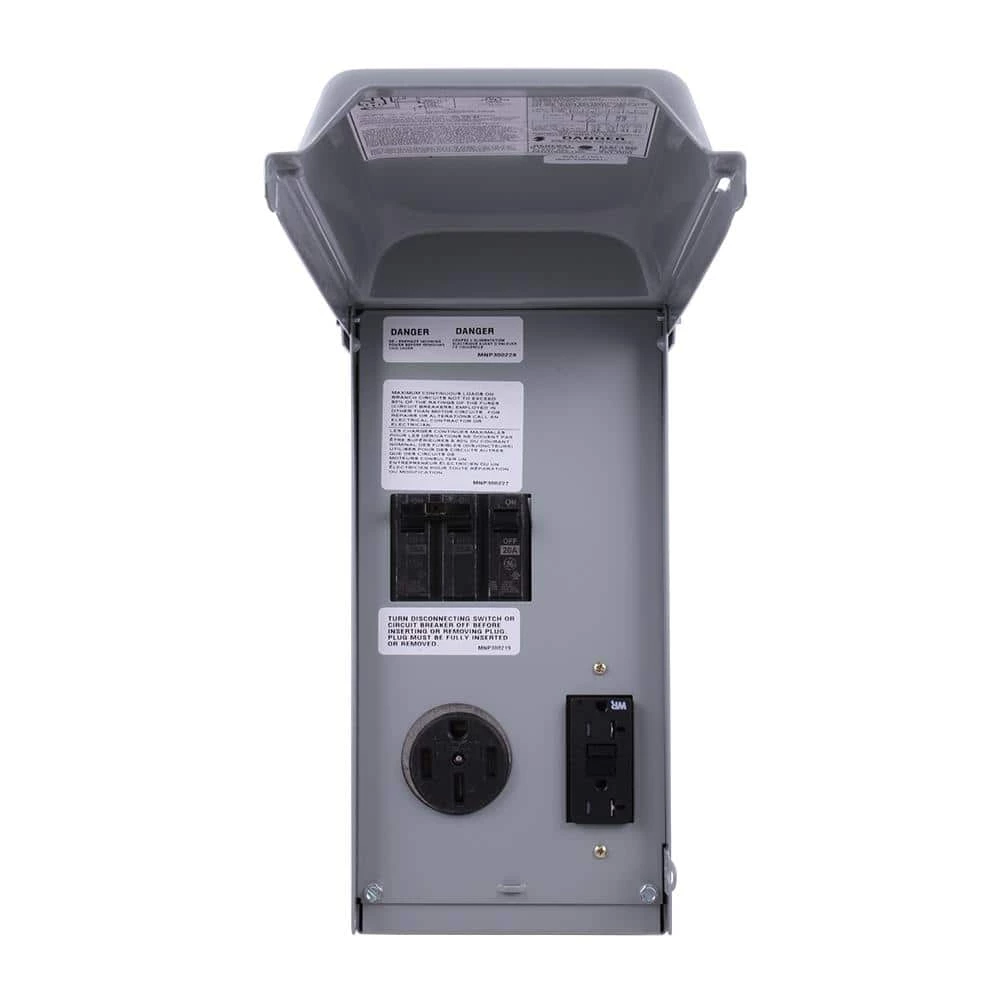

The Unmetered Surface Mount RV Outlet Box is factory-assembled and factory-tested. It comes to the construction job site ready to use with no need to assemble individual parts, saving installation time. The single, heavy-gauge NEMA 3R rainproof enclosure protects against weather, vandalism and nuisance tripping. It is lockable and is engineered for maximum protection of receptacles, cords, plugs, breakers. The unit complies with National Electrical Code and OSHA requirements.
- All-in-1 construction for factory assured terminations
- Rolled edge door for cord protection
- Heavy galvanized zinc coated steel, with highest quality electro-deposition finish – resists corrosion and fading
- Welded flange NEMA 3R construction for lasting service in outdoor installations
- UL Listed for RV use, not suitable for service entrance

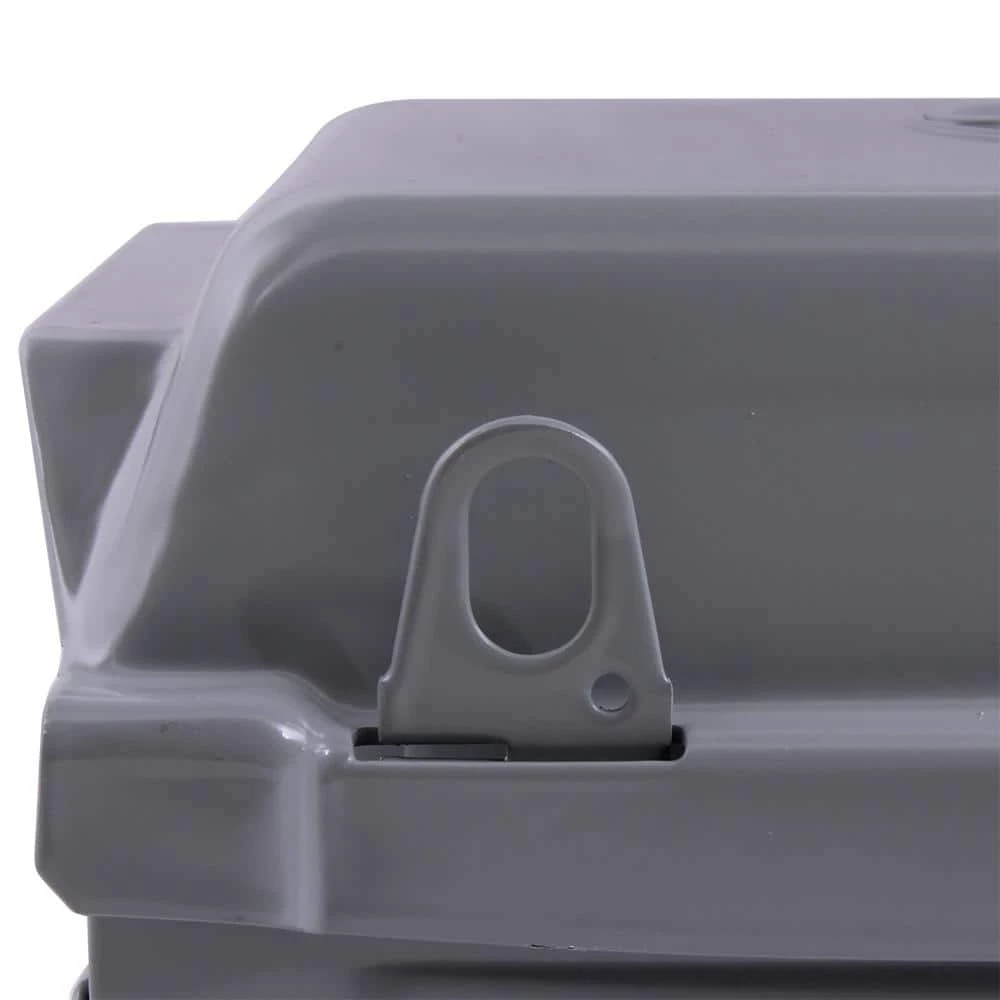

- Padlock provision can prevent unauthorized entry
- Dead front construction prevents accidental contact with live parts
- All components are factory wired and assembled, reducing installation time
- Power outlet door has stay-open position for user convenience
- All terminals accept copper or aluminum wire for added installation flexibility
- Broad range of concentric knock-outs to accommodate wiring needs
- All units with 12-2 copper/aluminum equipment ground lug
- Closure caps included, hubs ordered separately
- Only the 20a receptacle is GFCI protected
| Electrical Product Type | Load Center |
|---|---|
| Load Center Type | Temporary Power |
| Maximum Amperage (amps) | 70 |
| Number of Circuits | 2 |
| Number of Spaces | 3 |
| Phase Type | 1 Phase |
| Product Weight (lb.) | 10 |
| Returnable | 90-Day |
| Voltage (volts) | 240 |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | One year warranty from first use |

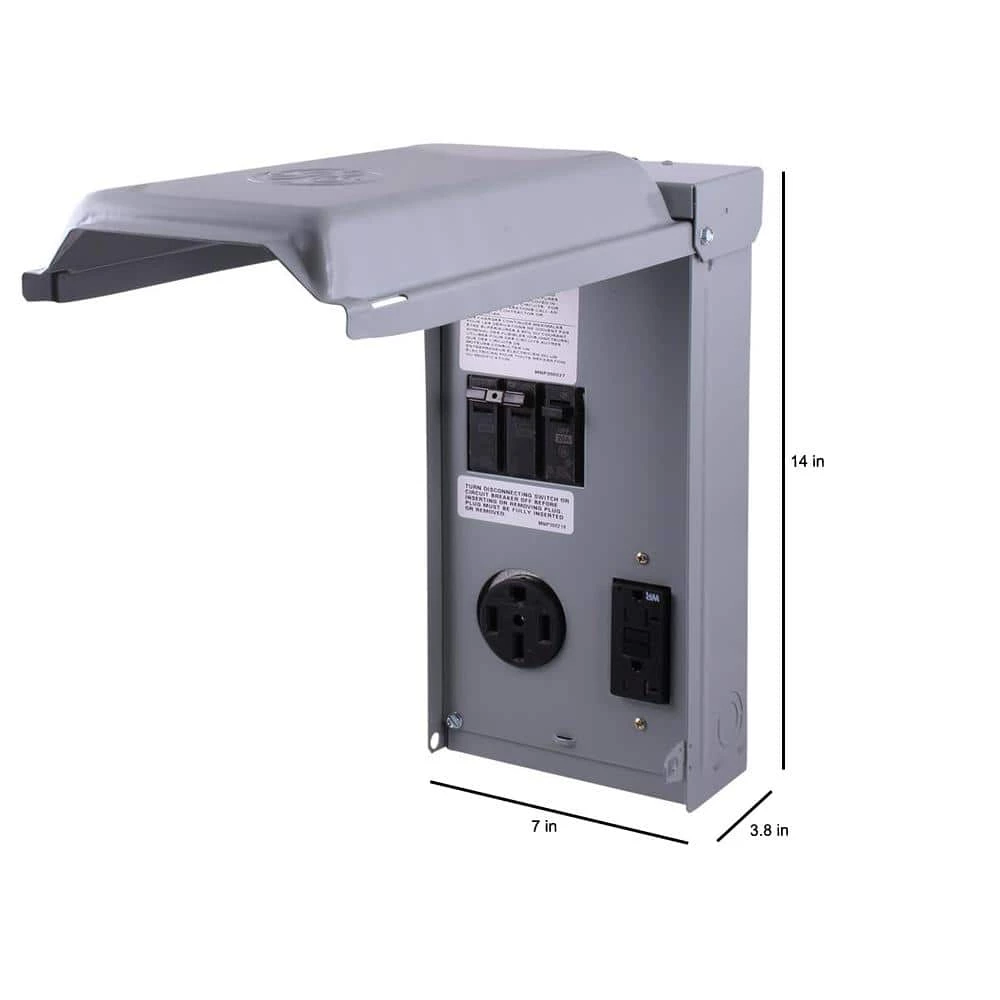

| Load center depth (in.) | 3.8 |
| Load center height (in.) | 14 |
| Load center width (in.) | 7 |
