Original price was: $36.00.$23.76Current price is: $23.76.
Indoor NEMA 1 enclosure
Main lugs are factory installed
Use with equipment ground kit TGL1 (order separately)
- Get the quality you deserve, for less.
- Safe and Secure Payments, Always
- Shop the Best Quality Online
- The quality you expect, the service you deserve.

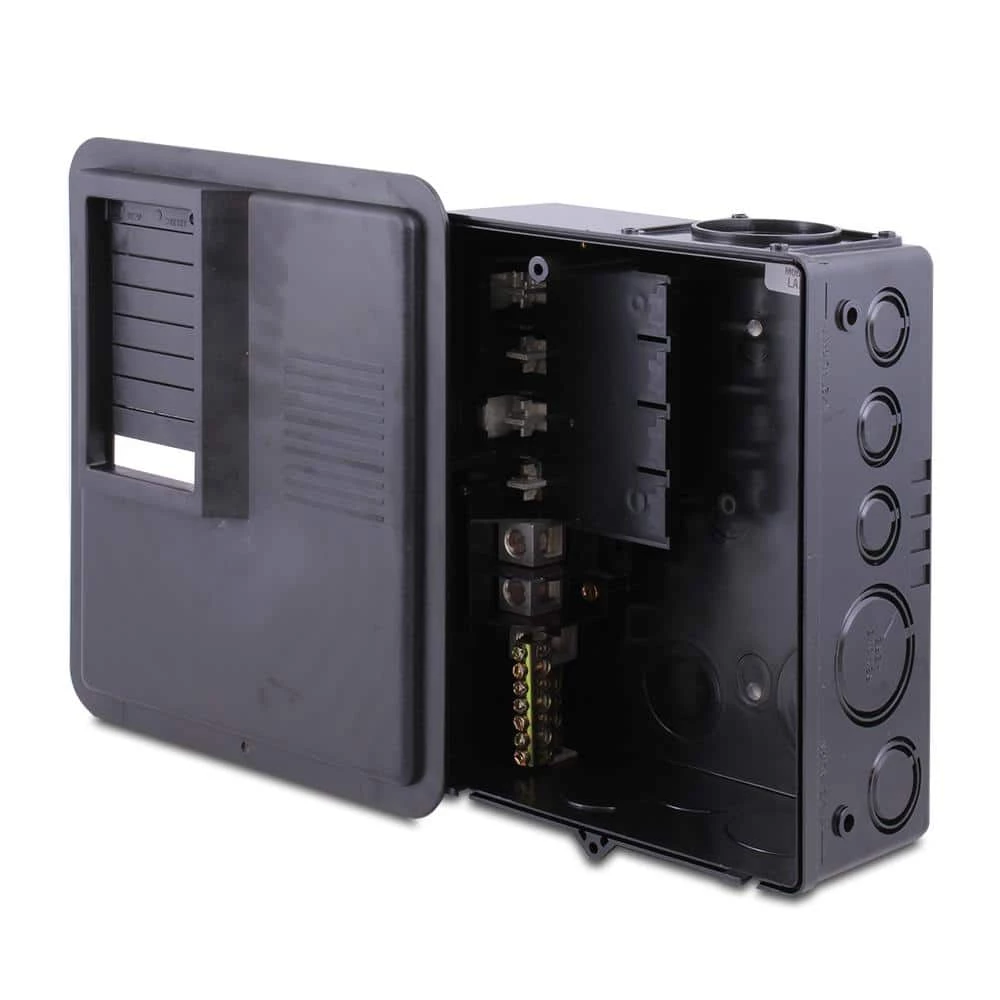

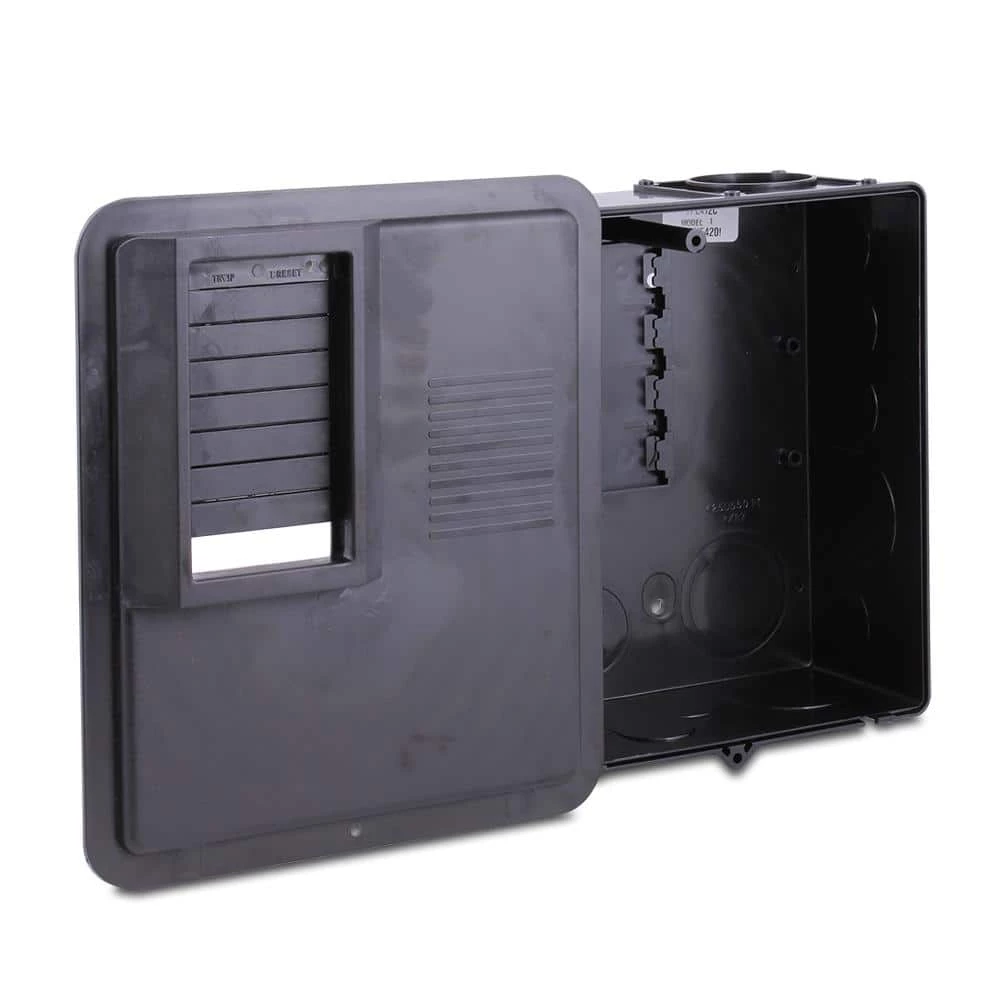

The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Indoor NEMA 1 enclosure with combination surface/flush front. This load center is UL listed and ANSI Certified.
- For use as an indoor main lug load center
- Non-metallic enclosure is maintenance free and rust resistant
- Copper buss for excellent conductivity
- Self-adjusting, dead-front cover
- Neutral holes are rated for #14-4 wire
- Single phase, 3 wire, 120/240-Volt
- Compatible with GE THQL, THQP, GFCI, DFCI and AFCI circuit breakers
- ANSI certified and UL listed
- Note: product may vary by store
| Electrical Product Type | Main Lug/ Main Lug Kit |
|---|---|
| Product Weight (lb.) | 2.426 |

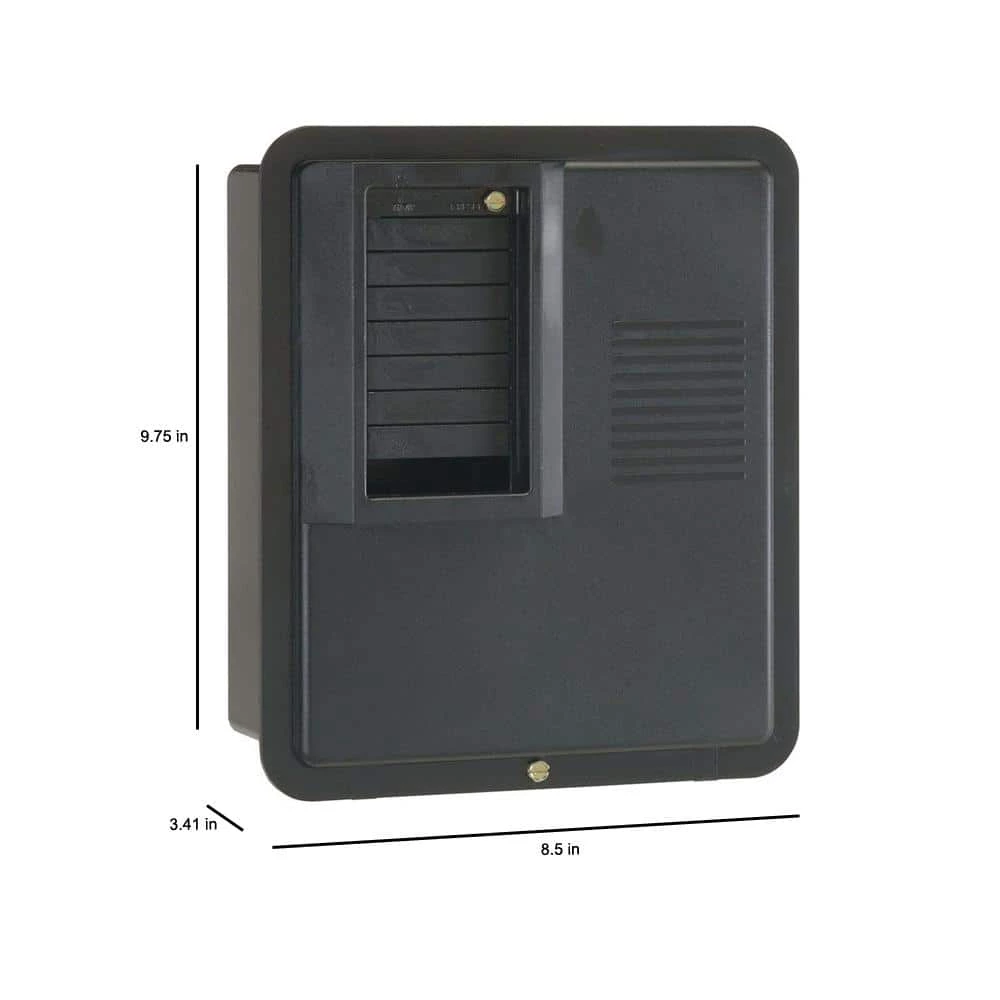

| Load center height (in.) | 9.75 |
| Load center depth (in.) | 3.41 |
| Manufacturer Warranty | One year warranty from first use |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 240 |
| Returnable | 90-Day |
| Phase Type | 1 Phase |
| Indoor/Outdoor | Indoor |
| Number of Spaces | 4 |
| Number of Circuits | 8 |
| NEMA Configuration | NEMA 1 |
| Mounting Type | Plug-On |
| Maximum Amperage (amps) | 125 |
| Load Center Type | Main Lug |
| Load Center Mounting Type | Flush,Surface |
| Load center width (in.) | 8.5 |
