Indoor NEMA 1 enclosure
Main lugs are factory installed; convertible to main breaker
Use with equipment ground kit TGL2 (order separately)
- Get the quality you deserve, for less.
- Safe and Secure Payments, Always
- Shop the Best Quality Online
- The quality you expect, the service you deserve.
The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Indoor NEMA 1 enclosure with a flush mount cover. This load center is UL listed and ANSI Certified.
- Use as a main lug load center or convert to a main breaker
- Galvanized box for rust resistance with a self-adjusting dead-front cover
- Copper bus for increased conduction
- Full-length neutral bars for faster and easier wiring
- Top or bottom feed
- Accepts standard GFCI and AFCI circuit breakers
- Compatible with THQL, THQP, GFCI, and AFCI GE circuit breakers
- ANSI certified and UL listed
| Electrical Product Type | Main Lug/ Main Lug Kit |
|---|---|
| Product Weight (lb.) | 9 |

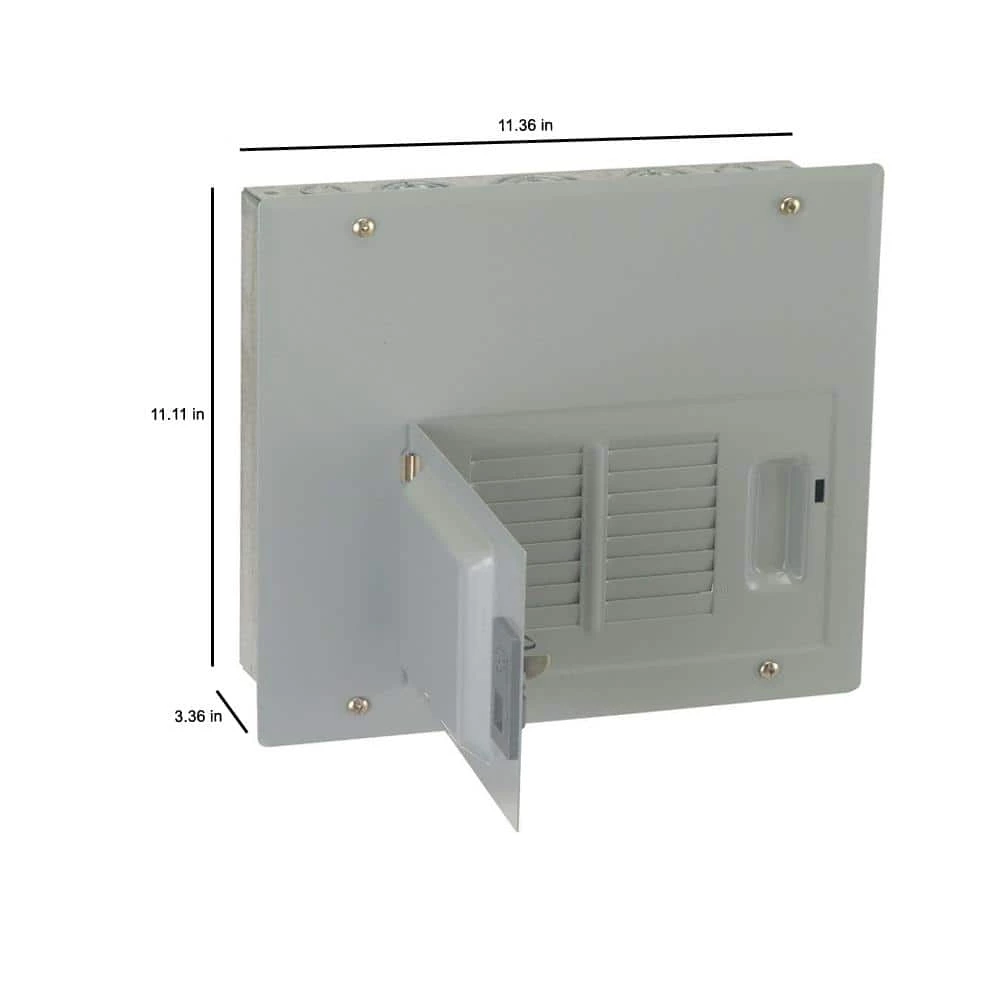

| Load center height (in.) | 11.11 |
| Load center depth (in.) | 3.36 |
| Manufacturer Warranty | One year warranty from first use |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 240 |
| Returnable | 90-Day |
| Phase Type | 1 Phase |
| Indoor/Outdoor | Indoor |
| Number of Spaces | 8 |
| Number of Circuits | 16 |
| NEMA Configuration | NEMA 1 |
| Mounting Type | Plug-On |
| Maximum Amperage (amps) | 125 |
| Load Center Type | Main Lug |
| Load Center Mounting Type | Flush |
| Load center width (in.) | 11.36 |
