Original price was: $222.50.$98.99Current price is: $98.99.
Outdoor NEMA 3R enclosure with removable closing caps
Main breaker is factory installed
Use with equipment ground kits TGK24 and TGK32 (order separately)
- Get the quality you deserve, for less.
- Safe and Secure Payments, Always
- Shop the Best Quality Online
- The quality you expect, the service you deserve.
The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Outdoor NEMA 3R enclosure. This load center is UL listed and ANSI Certified.
- For use as a main breaker load center
- Suitable for use as service entrance equipment when installed in accordance with the NEC
- NEMA 3R-rated enclosure for outdoor use
- Copper buss for excellent conductivity
- Single phase
- 240-Volts
- ANSI certified and UL listed
- Closure caps included, hubs ordered separately
| Electrical Product Type | Load Center |
|---|---|
| Product Weight (lb.) | 29.301 |

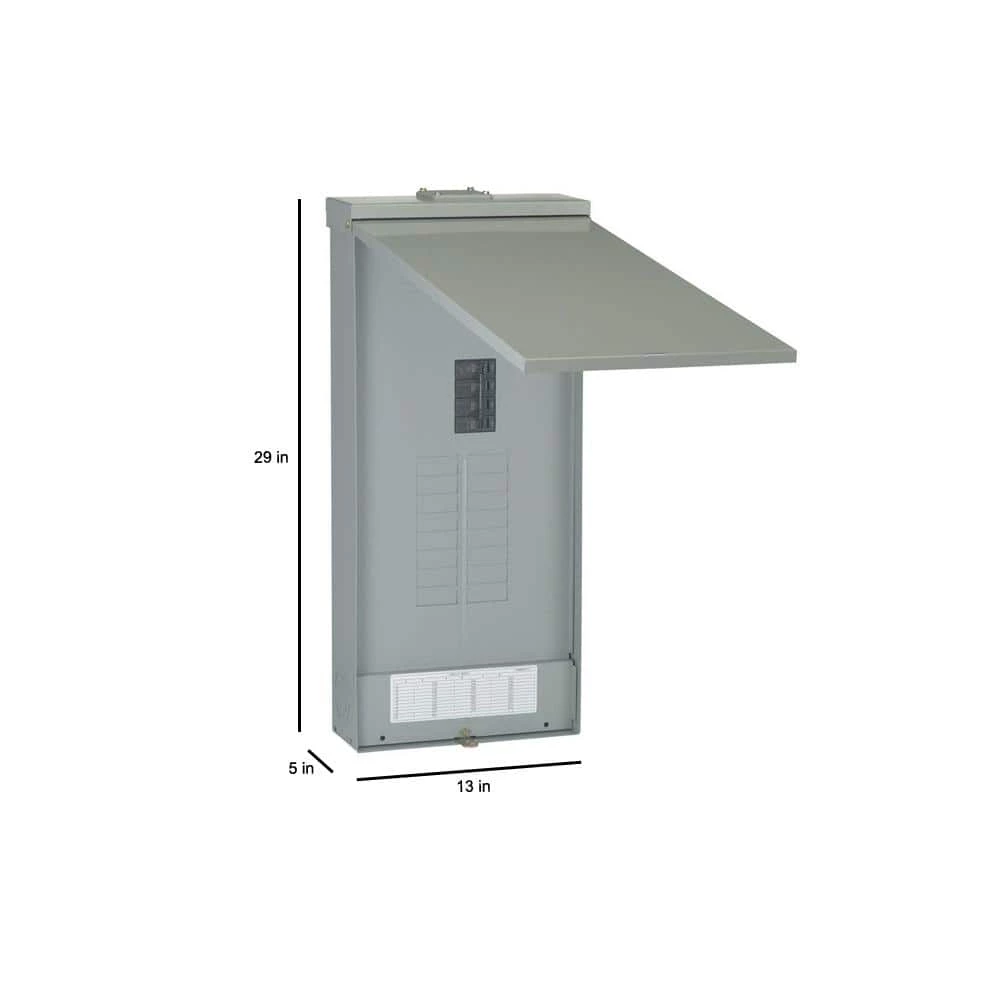

| Load center height (in.) | 29 |
| Load center depth (in.) | 5 |
| Manufacturer Warranty | One year warranty from first use |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 240 |
| Returnable | 90-Day |
| Phase Type | 1 Phase |
| Indoor/Outdoor | Outdoor |
| Number of Spaces | 16 |
| Number of Circuits | 32 |
| NEMA Configuration | NEMA 3R |
| Mounting Type | Plug-On |
| Maximum Amperage (amps) | 150 |
| Load Center Type | Main Breaker |
| Load Center Mounting Type | Surface |
| Load center width (in.) | 13 |
