Original price was: $51.45.$36.02Current price is: $36.02.
Outdoor NEMA 3R enclosure
Main lugs are factory installed; convertible to main breaker
Use with equipment ground kit TGK12 (order separately)
- Get the quality you deserve, for less.
- Safe and Secure Payments, Always
- Shop the Best Quality Online
- The quality you expect, the service you deserve.

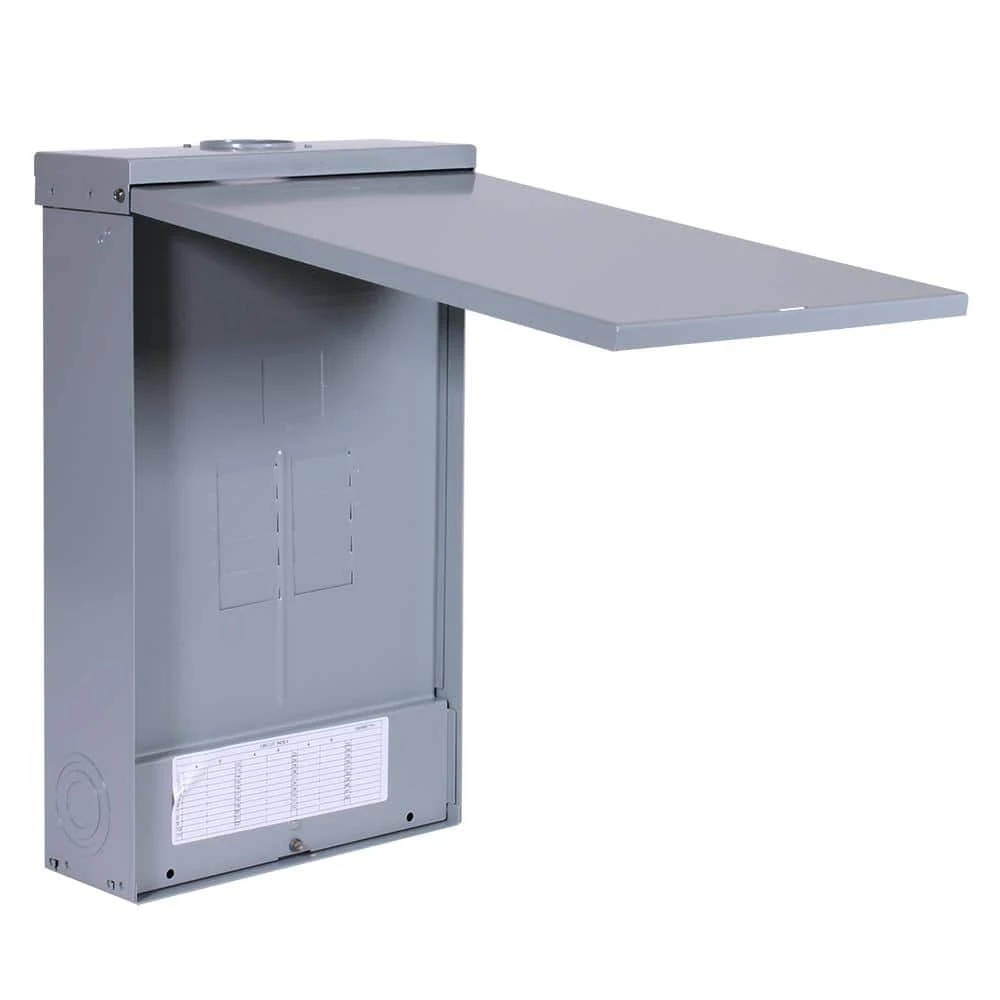

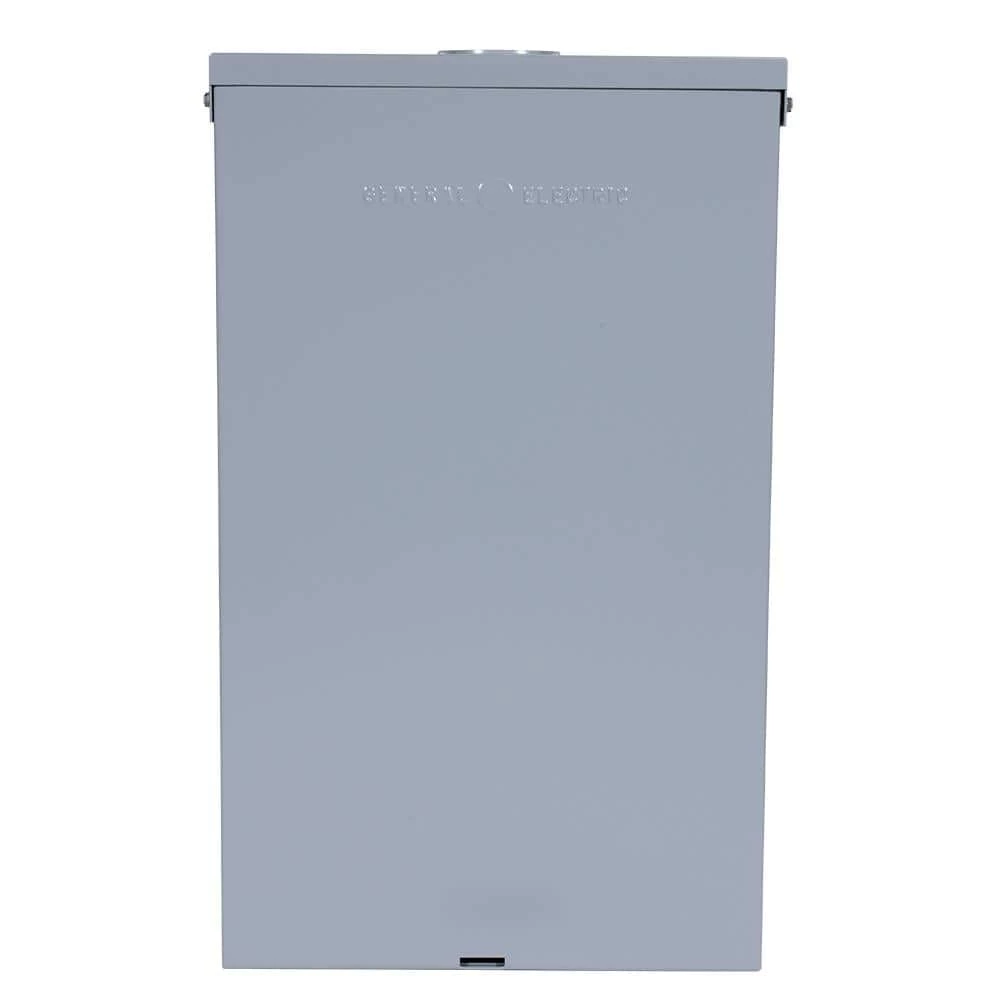

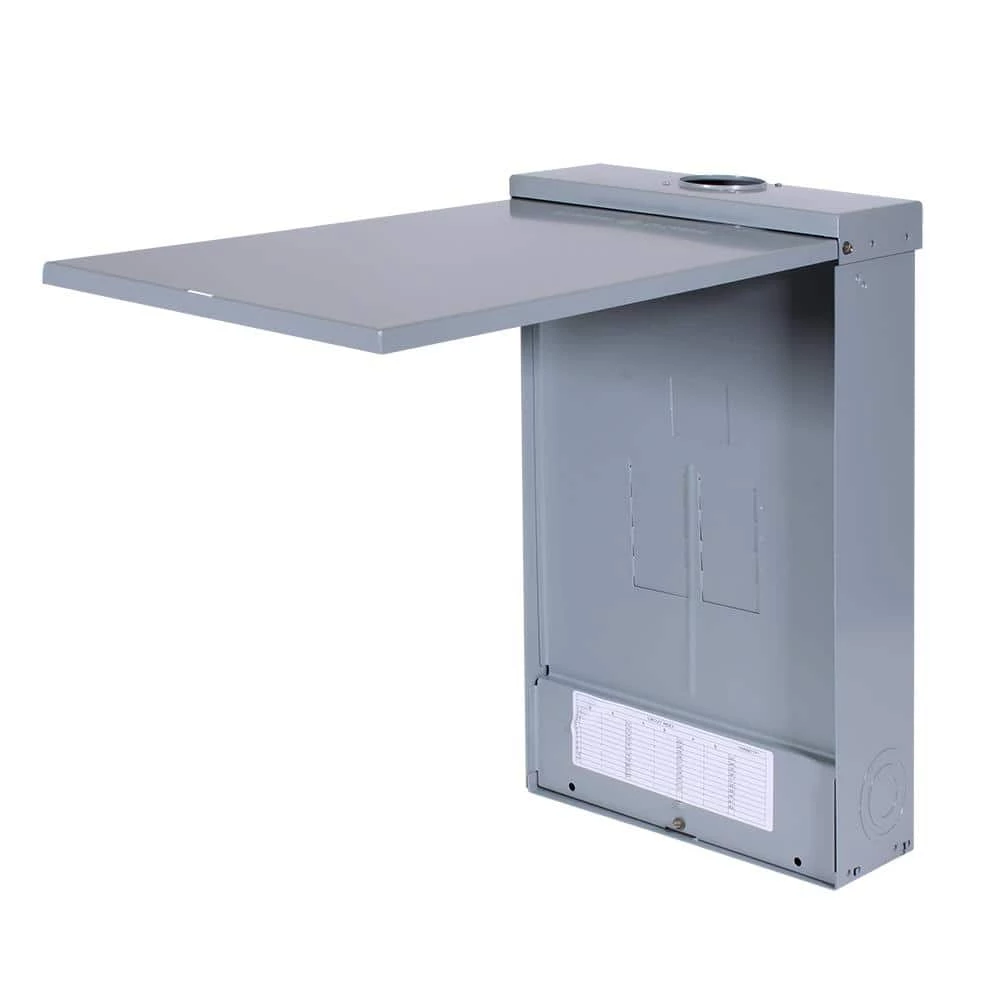

The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The 1-piece interior removes and re-installs easily. Outdoor NEMA 3R enclosure. This load center is UL listed and ANSI Certified.
- Rust-resistant galvanized box for outdoor use
- Highly conductive copper buss bar
- Factory-installed main lug, full-length neutral bars, top or bottom feed and self-adjusting, dead-front cover
- 100% rated split neutral on each side
- Single-phase, 3-wire, 120/240-Volt and 22K AIC rating
- All neutral holes rated for 14 – 4 wire
- Accepts GE, GFCI and AFCI breakers
- UL listed and ANSI certified
- Convertible to main breaker
- Closure caps included, hubs ordered separately
| Electrical Product Type | Main Lug/ Main Lug Kit |
|---|---|
| Product Weight (lb.) | 19.3 |

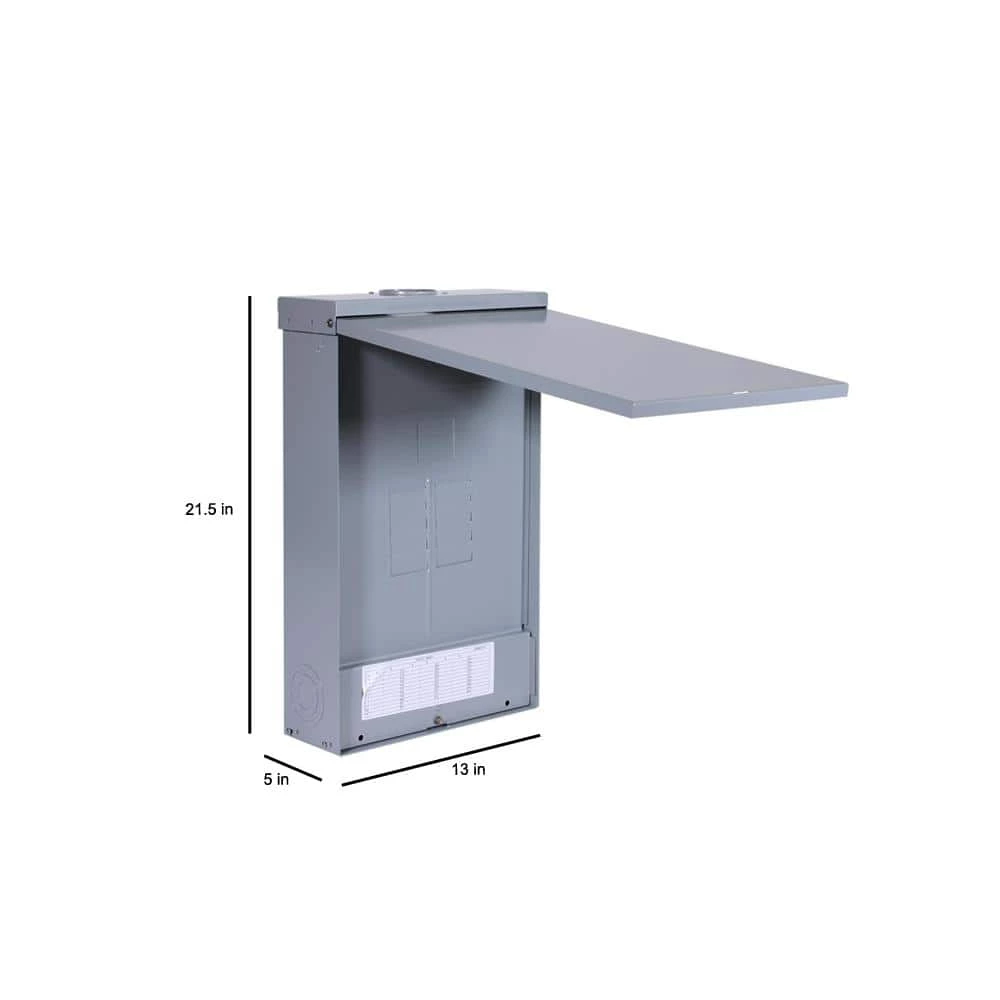

| Load center height (in.) | 21.5 |
| Load center depth (in.) | 5 |
| Manufacturer Warranty | One year warranty from first use |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 240 |
| Returnable | 90-Day |
| Phase Type | 1 Phase |
| Indoor/Outdoor | Outdoor |
| Number of Spaces | 8 |
| Number of Circuits | 16 |
| NEMA Configuration | NEMA 3R |
| Mounting Type | Plug-On |
| Maximum Amperage (amps) | 125 |
| Load Center Type | Main Lug |
| Load Center Mounting Type | Surface |
| Load center width (in.) | 13 |
