Original price was: $288.28.$98.99Current price is: $98.99.

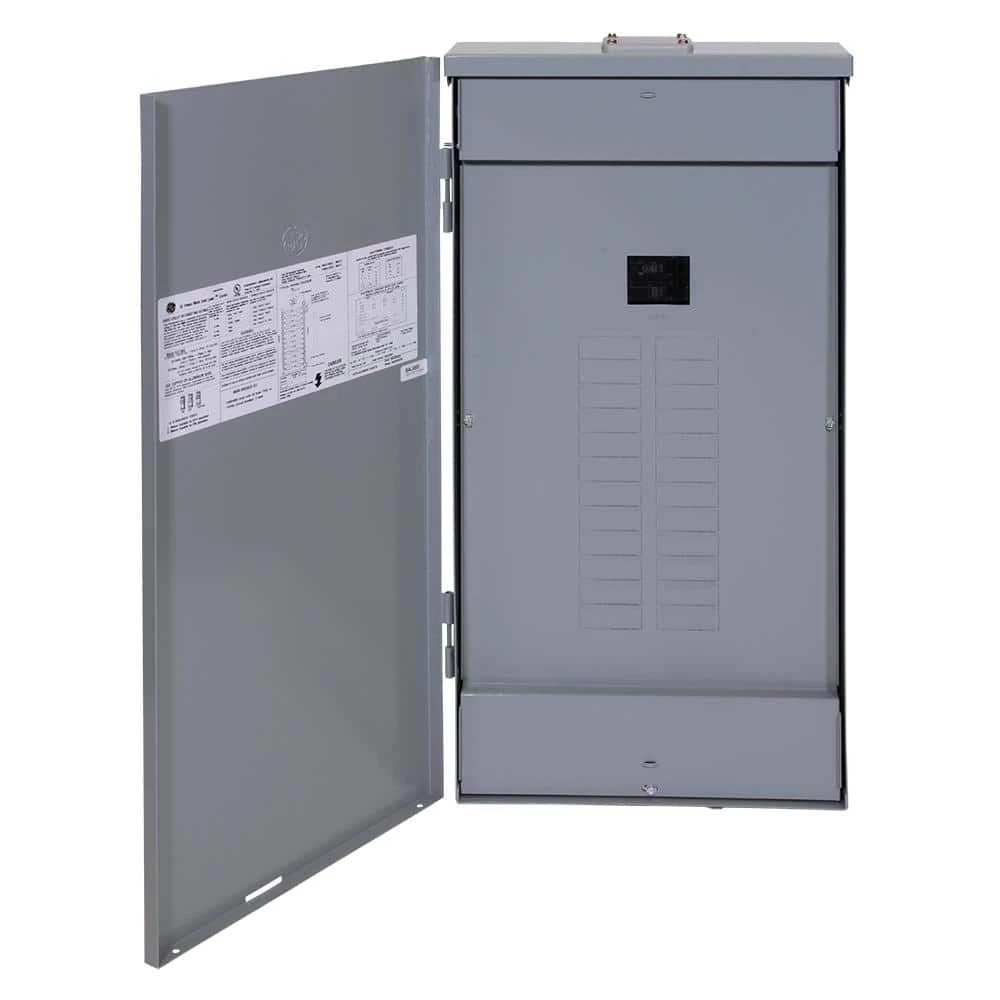

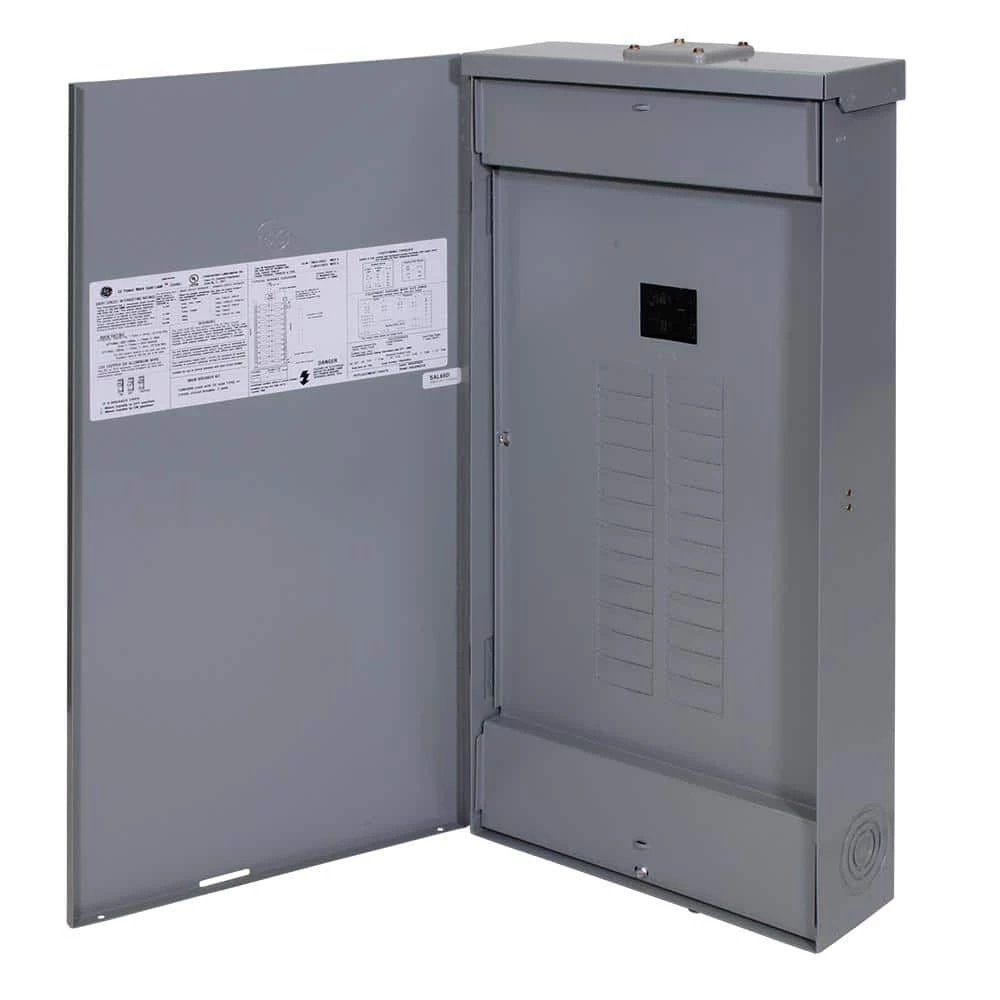

Outdoor NEMA 3R enclosure with removable closing caps
Main breaker is factory installed
Includes four 20 Amp arc fault circuit breakers
- Get the quality you deserve, for less.
- Safe and Secure Payments, Always
- Shop the Best Quality Online
- The quality you expect, the service you deserve.

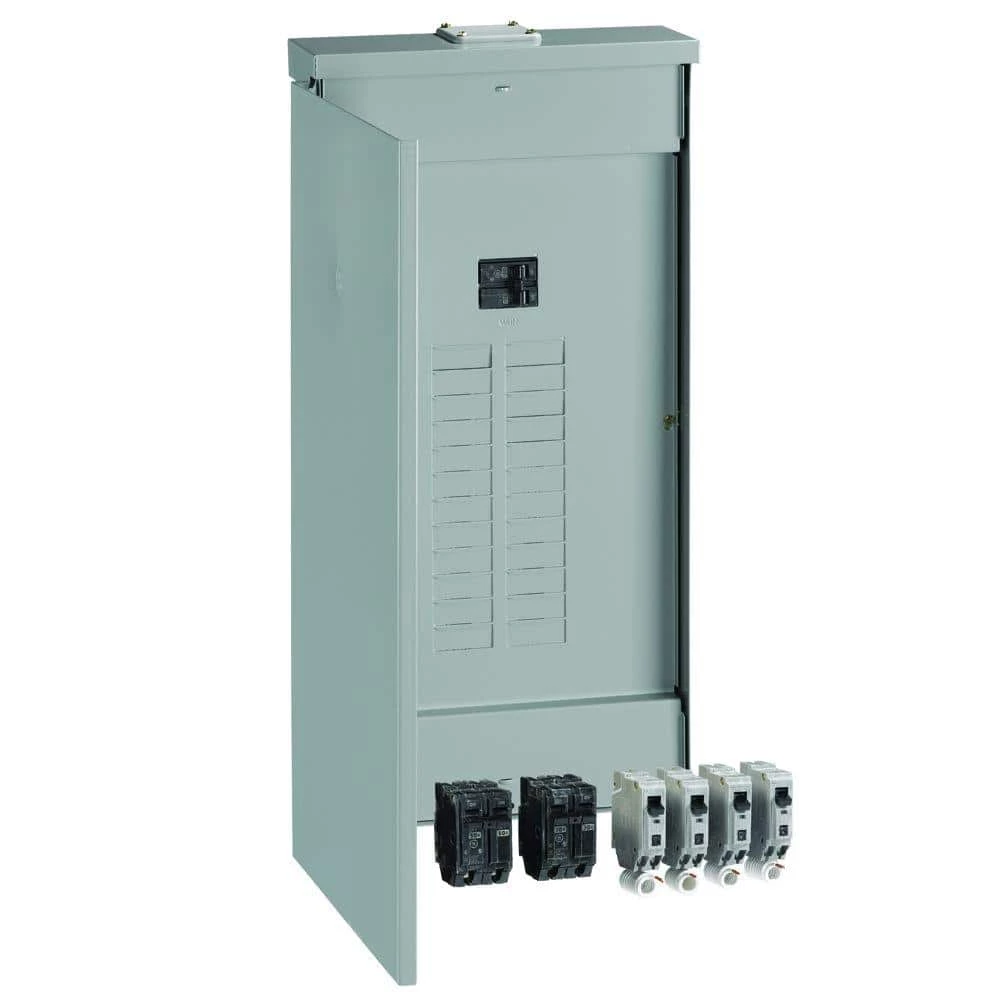

This value kit includes 4 20 Amp Cobmination Arc Fault, 1 30 Amp Double-Pole, 1 50 Amp Double Pole THQL 1 in. Circuit Breakers. The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Outdoor NEMA 3R enclosure. This load center is UL listed and ANSI Certified.
- Rust-resistant galvanized box for outdoor use
- Highly conductive copper buss bar
- Factory-installed main breaker, full-length neutral bars, top or bottom feed and self-adjusting, dead-front cover
- 100% rated split neutral on each side
- Single phase, 3-wire, 120/240 VAC
- All neutral holes are rated for 14 – 4 wire
- Accepts GE circuit breakers
- UL listed and ANSI certified
- Includes 4 single-pole 20 Amp combination arc fault breakers (CAFCIs), one 2-pole 30 Amp circuit breaker and one 2-pole 50 Amp circuit breaker
- Closure caps included, hubs ordered separately
| Electrical Product Type | Load Center and Breaker Kit |
|---|---|
| Product Weight (lb.) | 36.61 |

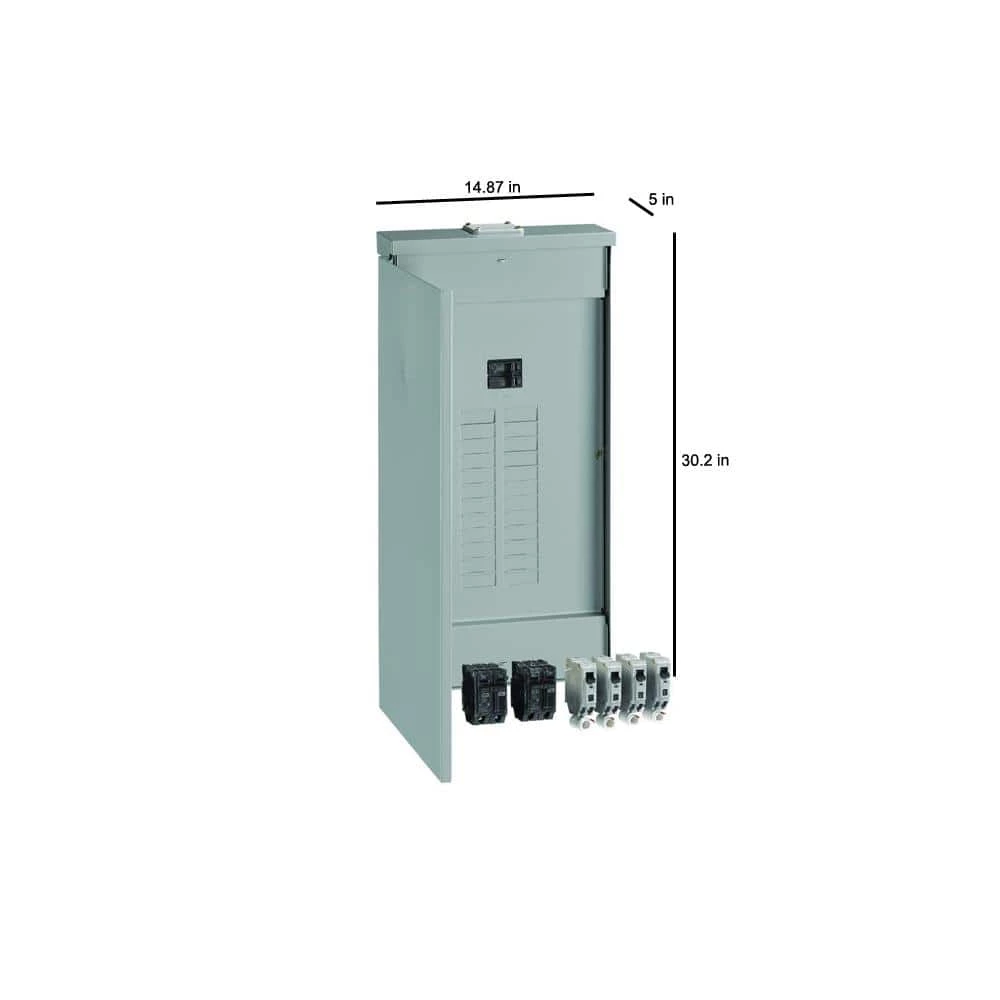

| Load center height (in.) | 30.2 |
| Load center depth (in.) | 5 |
| Manufacturer Warranty | One year warranty from first use |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 240 |
| Returnable | 90-Day |
| Phase Type | 1 Phase |
| Indoor/Outdoor | Outdoor |
| Number of Spaces | 24 |
| Number of Circuits | 24 |
| NEMA Configuration | NEMA 3R |
| Mounting Type | Plug-On |
| Maximum Amperage (amps) | 125 |
| Load Center Type | Main Breaker |
| Load Center Mounting Type | Surface |
| Load center width (in.) | 14.87 |
