Original price was: $91.60.$58.62Current price is: $58.62.
Indoor NEMA 1 enclosure
Main lugs are factory installed; convertible to main breaker

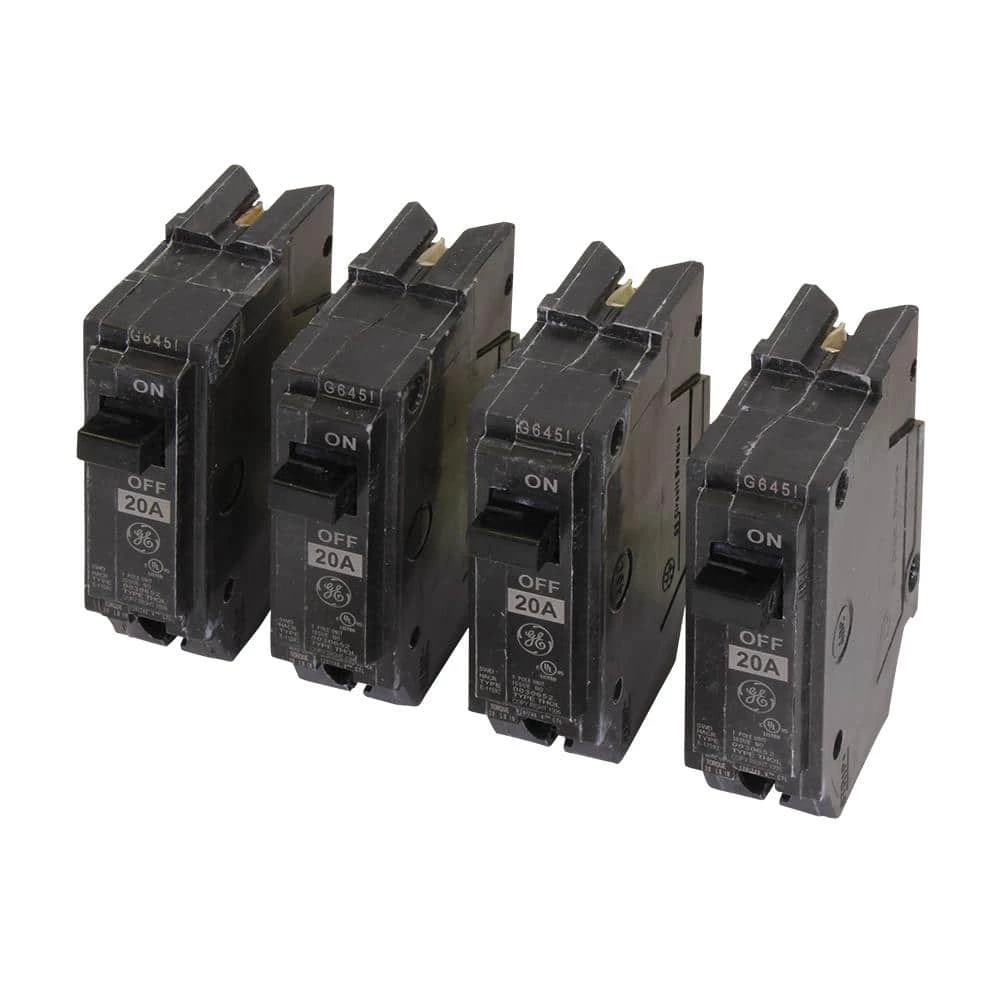

Includes equipment ground kit and four 20 Amp breakers
- Get the quality you deserve, for less.
- Safe and Secure Payments, Always
- Shop the Best Quality Online
- The quality you expect, the service you deserve.

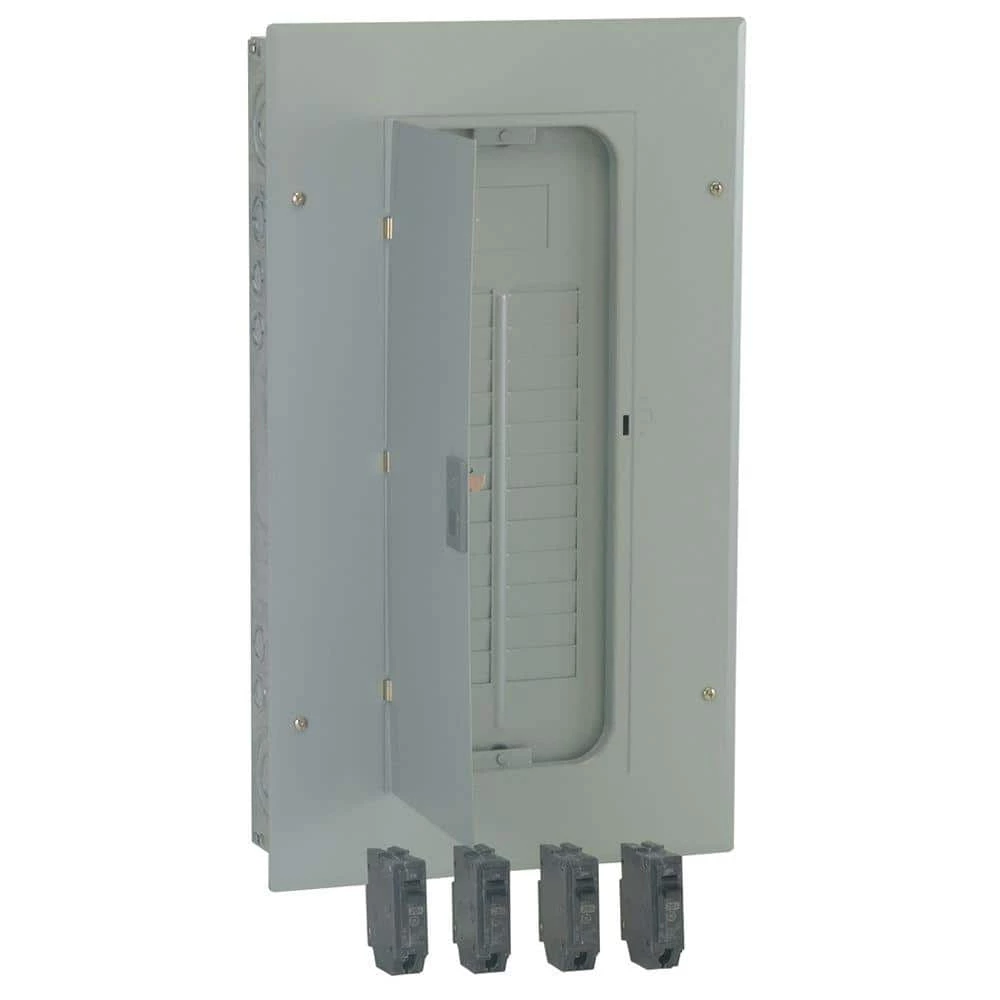

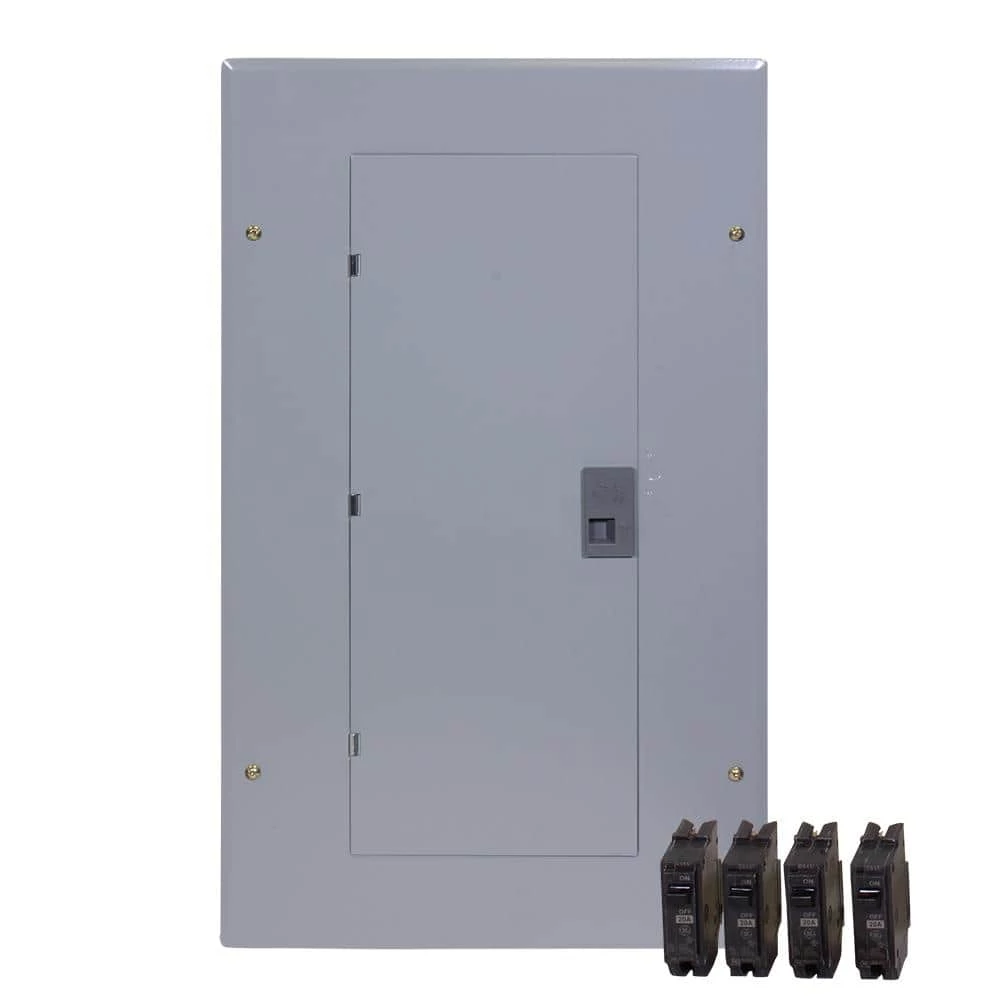

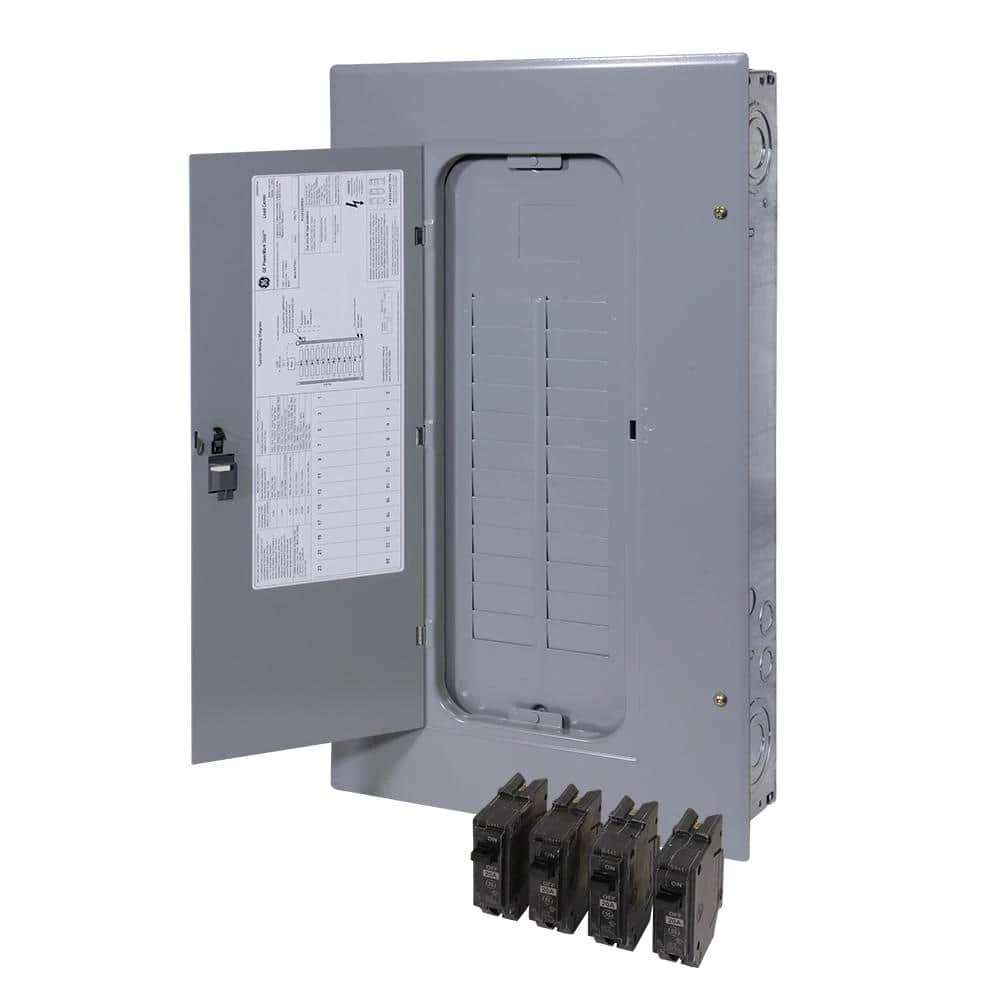

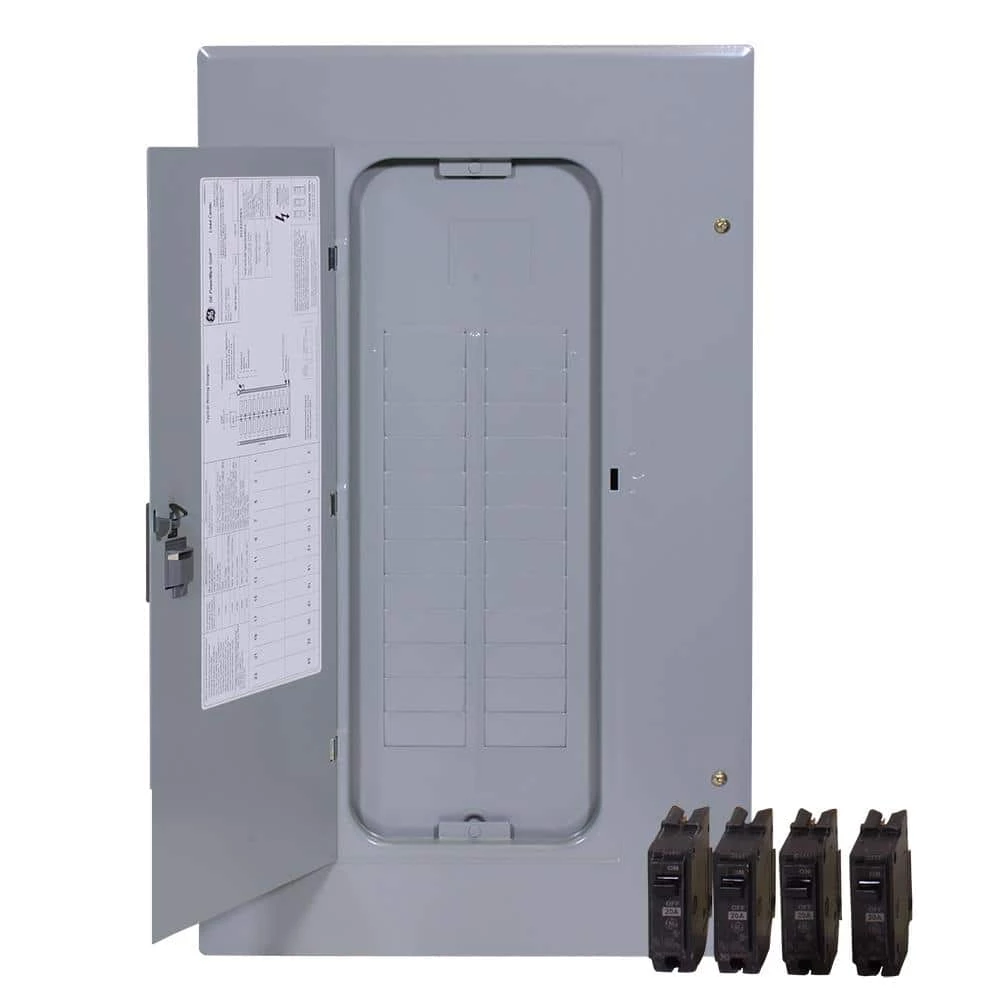

This value kit includes 4 20 Amp Single-Pole THQL 1 in. Circuit Breakers. The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Indoor NEMA 1 enclosure with combination surface/flush front. This load center is UL listed and ANSI Certified.
- Rust-resistant galvanized box
- Highly conductive copper buss bar
- Full-length neutral bars, top or bottom feed and self-adjusting, dead-front cover
- Indoor fronts for surface or flush installation
- 100% rated split neutral on each side
- Single phase, 3-wire, 120/240-Volt and 22K AIC rating
- All neutral holes are rated for 14-4 wire
- Compatible with GE THQL, GFCI and AFCI circuit breakers
- UL listed and ANSI certified
| Electrical Product Type | Main Lug/ Main Lug Kit |
|---|---|
| Phase Type | 1 Phase |

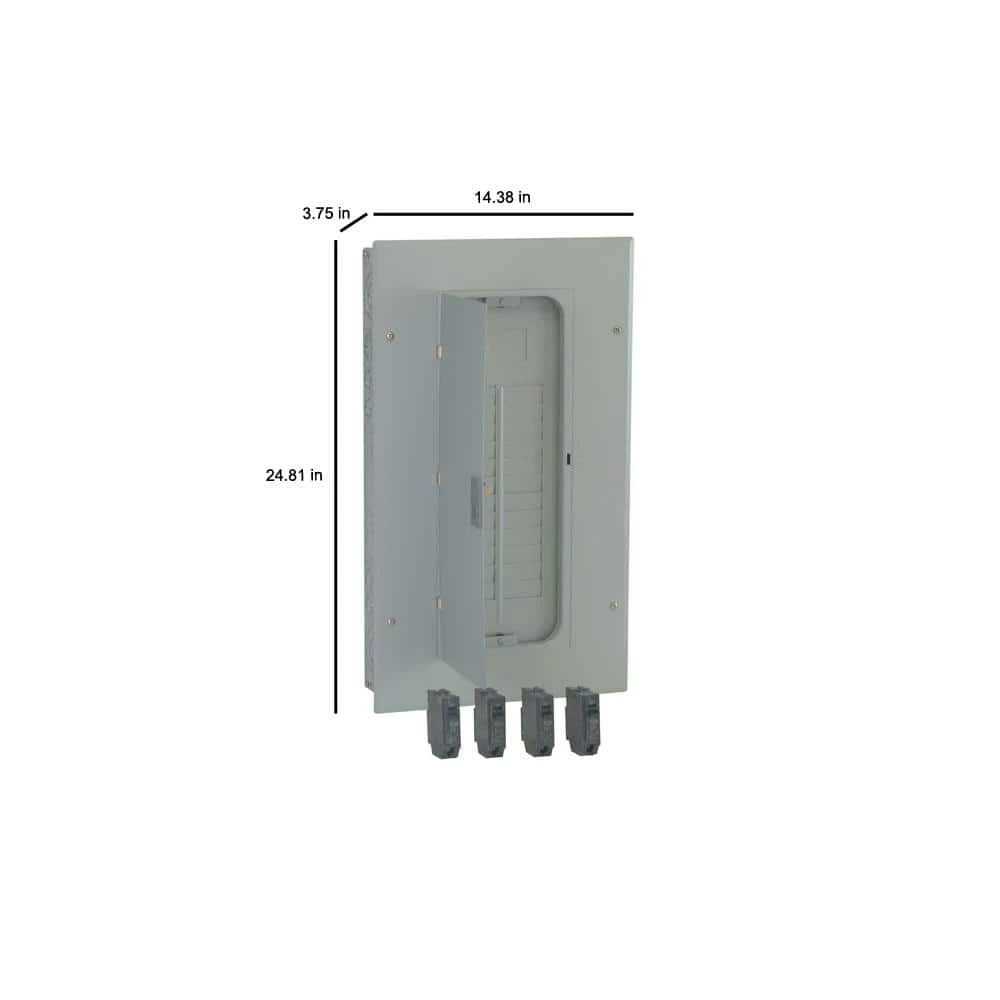

| Load center height (in.) | 24.81 |
| Load center depth (in.) | 3.75 |
| Manufacturer Warranty | One year warranty from first use |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 240 |
| Returnable | 90-Day |
| Number of Spaces | 24 |
| Indoor/Outdoor | Indoor |
| Number of Circuits | 24 |
| NEMA Configuration Receptacle | No Receptacle |
| NEMA Configuration | NEMA 1 |
| Mounting Type | Plug-On |
| Maximum Amperage (amps) | 125 |
| Load Center Type | Main Lug |
| Load Center Mounting Type | Flush,Surface |
| Load center width (in.) | 14.38 |
Be the first to review “PowerMark Gold 125 Amp 24-Space 24-Circuit Indoor Main Lug Value Kit Includes Select Circuit Breaker by GE”
