Original price was: $411.69.$99.99Current price is: $99.99.

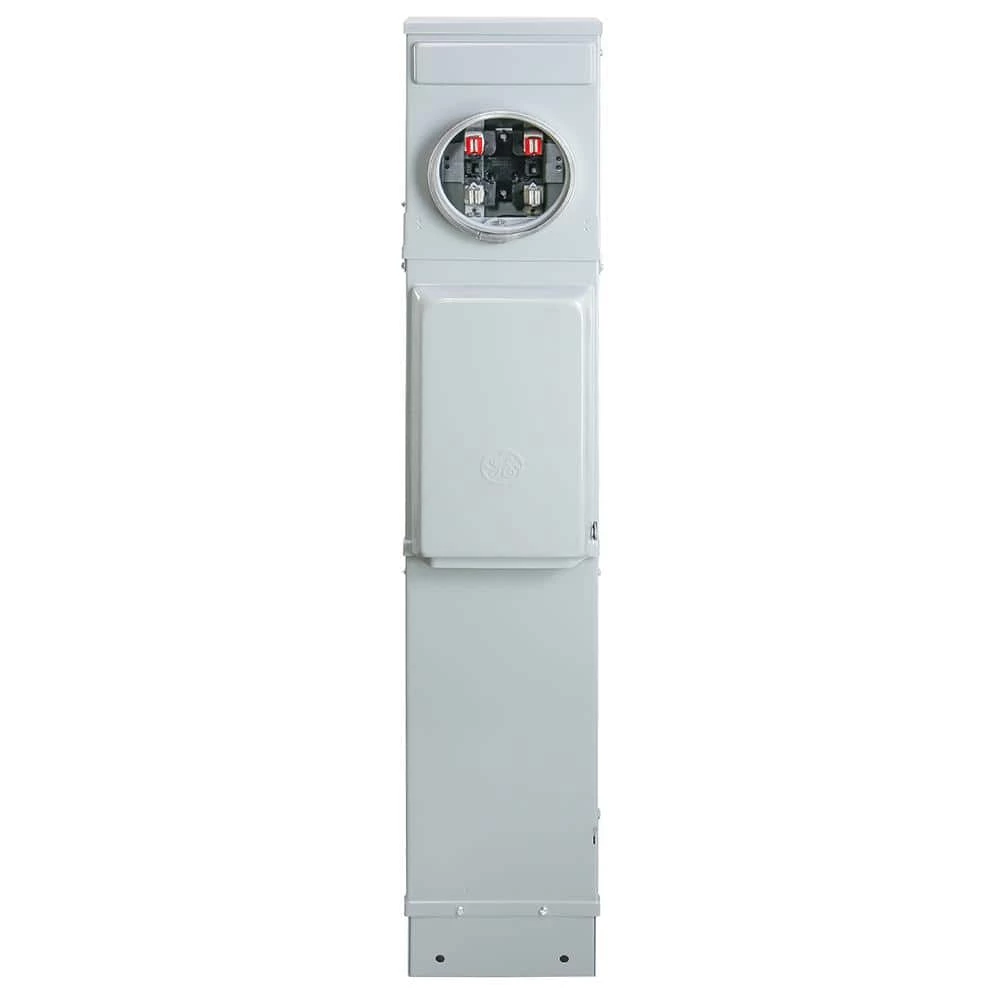

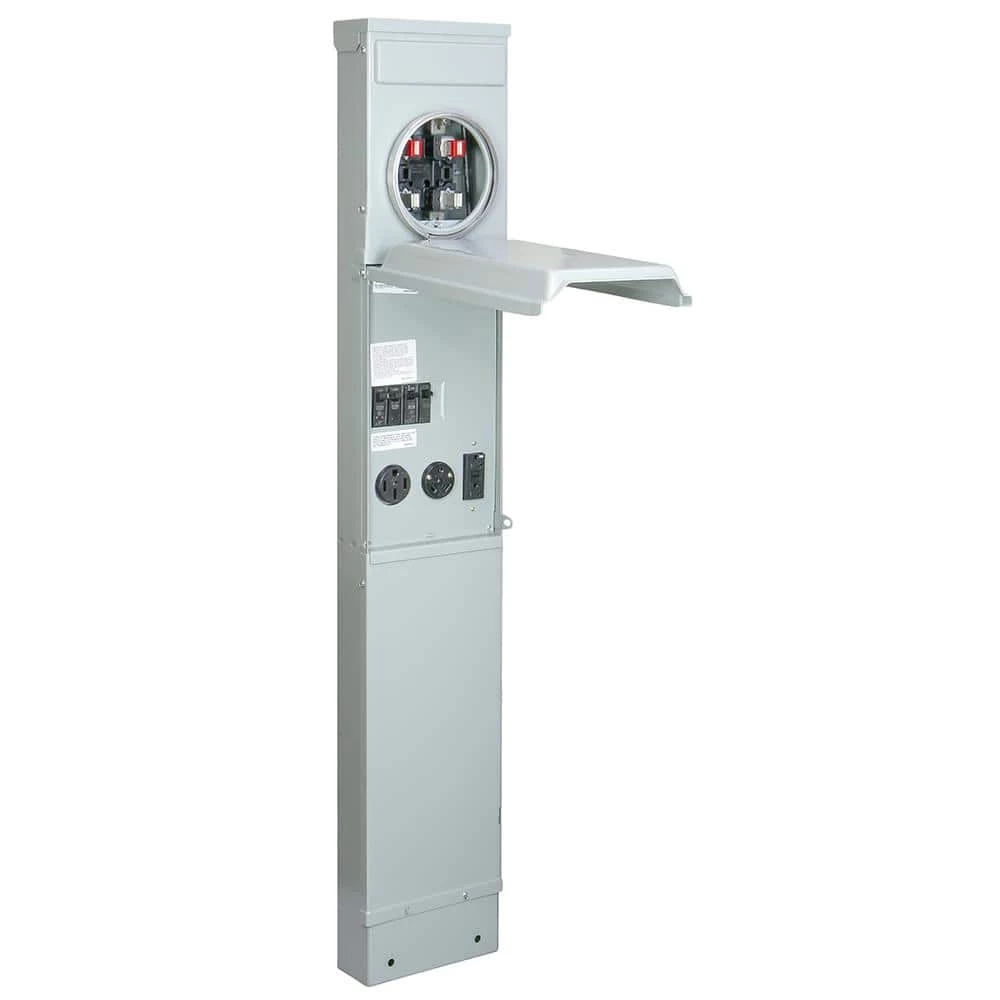

100A Metered Power Pedestal for recreational vehicle park power
5-Space 5-Circuit includes circuit breakers
Stay open position on door
- Get the quality you deserve, for less.
- Safe and Secure Payments, Always
- Shop the Best Quality Online
- The quality you expect, the service you deserve.
This pad mount metered RV pedestal is lockable and engineered for maximum protection of receptacles, cords, plugs, breakers. It comes to the construction job site ready to install with no need to assemble individual parts, saving installation time. The dual, heavy-gauge NEMA 3R rainproof enclosures protect against weather, vandalism and nuisance tripping. The unit complies with National Electrical Code and OSHA requirements.
- 100 Amp power head and ring type meter socket on a single pad mount pedestal
- All-in-one construction for factory assured terminations
- Installed receptacles: 1-50 Amp 240-Volt, 1-30 Amp 120-Volt and 1-20 Amp GFCI
- Installed breakers: 1-THQL2150 240-Volt breaker, 1-THQL1130 120-Volt breaker, 1-THQL1120 120-Volt
- Rolled edge door for cord protection
- Heavy galvanized zinc coated steel, with highest quality electro-deposition finish – resists corrosion and fading
- Welded flange NEMA 3R construction for lasting service in outdoor installations
- UL listed for RV use, not suitable for service entrance
- Padlock provision can prevent unauthorized entry
- Dead front construction prevents accidental contact with live parts
- Power outlet door has stay-open position for user convenience
- All components are factory wired and assembled, reducing installation time
- All terminals accept copper or aluminum wire for added installation flexibility
- Underground feed
- 5 spaces/5 circuit capability and 1 open space available
- Lockable
- Single, heavy-gauge NEMA 3R rainproof enclosure
- Only the 20a receptacle is GFCI protected
- Ring type non-utility meter socket used for sub-metering (Electric meter not included)
| Electrical Product Type | Distribution Load Center / Breaker Accessory |
|---|---|
| Load Center Type | Temporary Power |
| Maximum Amperage (amps) | 100 |
| Number of Circuits | 5 |
| Number of Spaces | 5 |
| Phase Type | 1 Phase |
| Product Weight (lb.) | 40 |
| Returnable | 90-Day |
| Voltage (volts) | 240 |
| Certifications and Listings | UL Listed,cUL Listed |
| Manufacturer Warranty | One year warranty from first use |

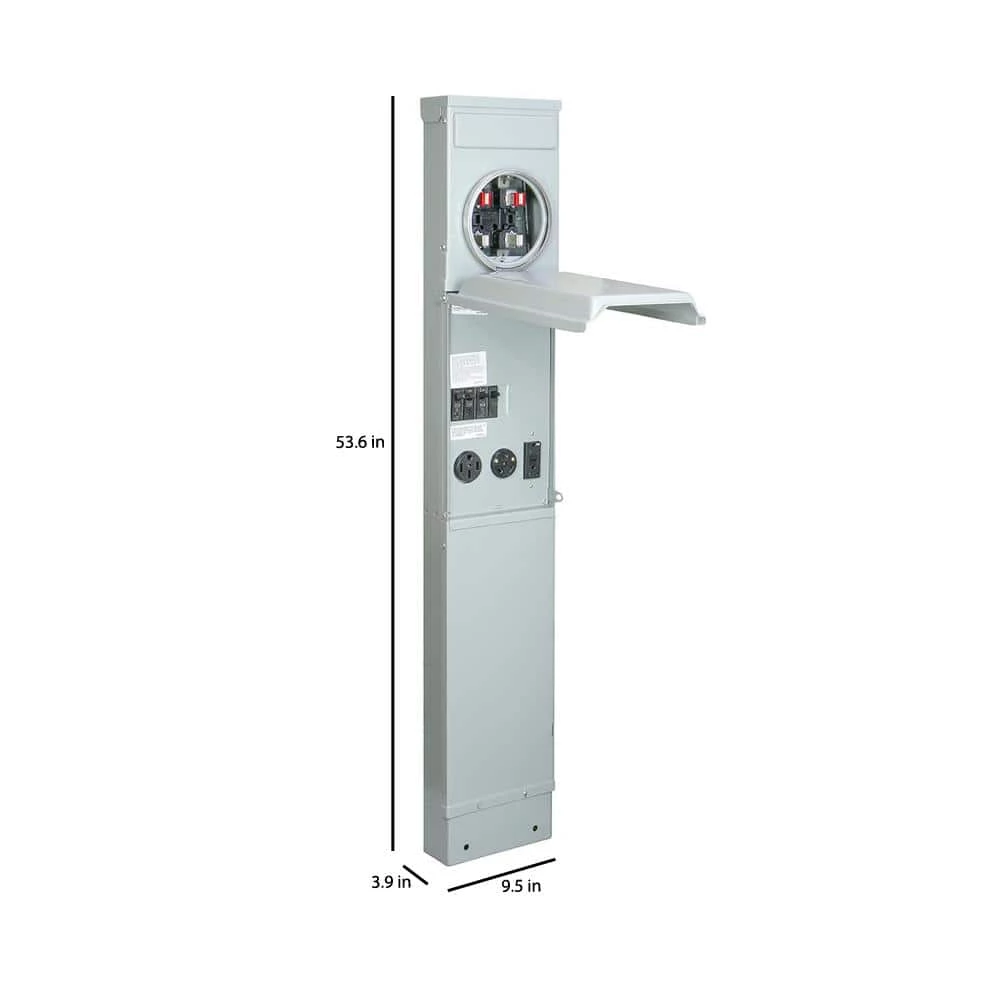

| Load center depth (in.) | 3.9 |
| Load center height (in.) | 53.6 |
| Load center width (in.) | 9.5 |
