Highly visible ON/OFF label and easy to grip red handle
Unobstructed gutter and self-leveling, 3-point mounting system
Integral cover interlock for added protection
- Get the quality you deserve, for less.
- Safe and Secure Payments, Always
- Shop the Best Quality Online
- The quality you expect, the service you deserve.

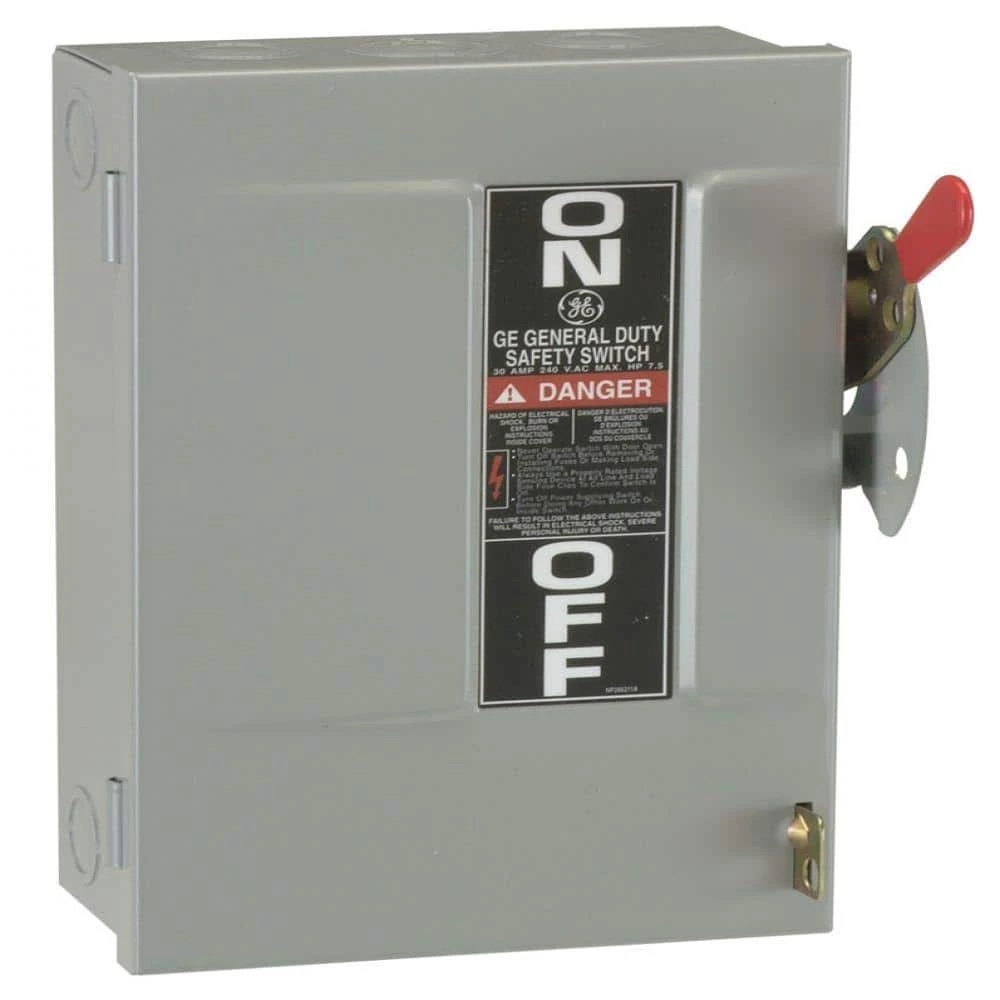

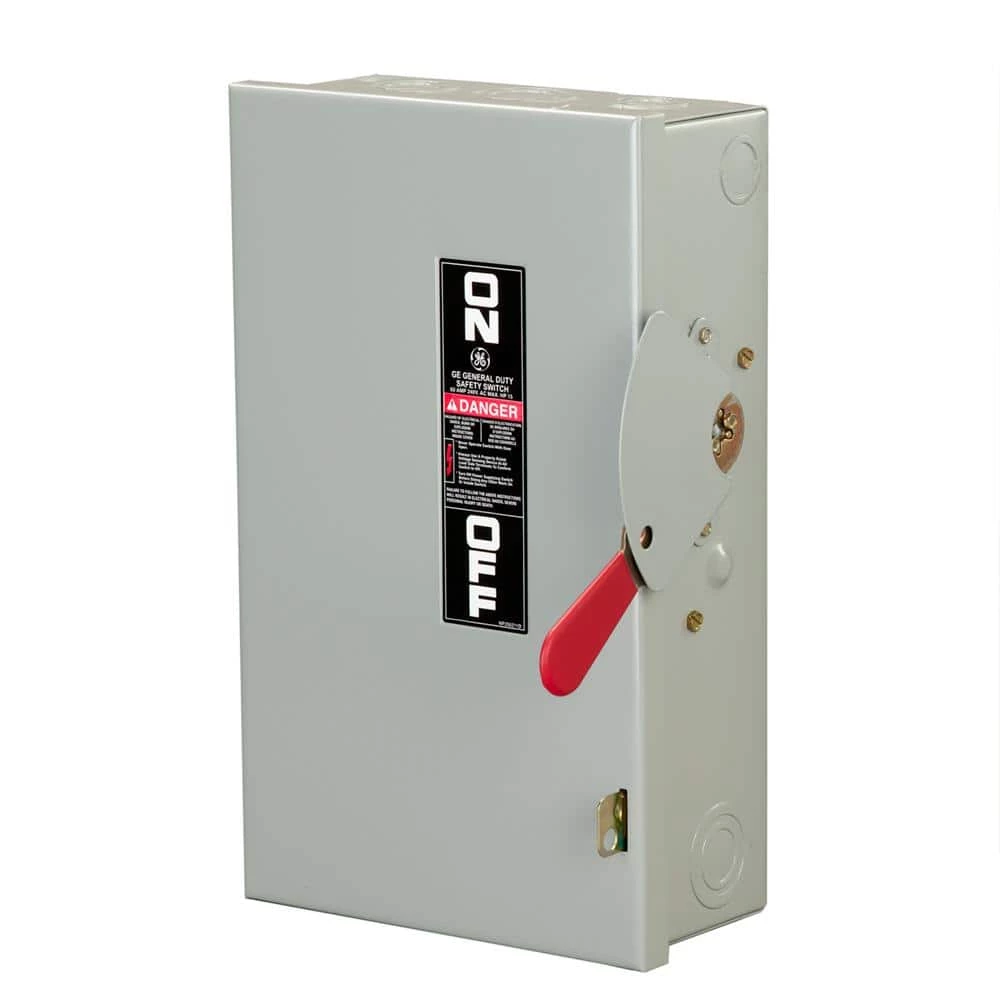

This GE 60 Amp 240-Volt Fusible Indoor General-Duty Safety Switch features a direct-drive, quick-make, quick-break mechanism that snaps contacts open and closed for positive on/off indication and prolonged switch life. The bright red handle is easy to see and grip while a highly visible on/off label helps ensure safety and provides a clean, up-to-date appearance.
- Type-TG general-duty safety switch designed for residential and light commercial applications where duty is not severe
- Type-1 enclosure offers a durable polyester-paint powder coating for indoor applications
- Highly visible on/off label helps ensure safety and gives a clean, modern appearance
- Bright red handle is easy to see and grip
- Direct-drive, quick-make, quick-break mechanism snaps the contacts open and closed providing positive on/off indication while prolonging switch life

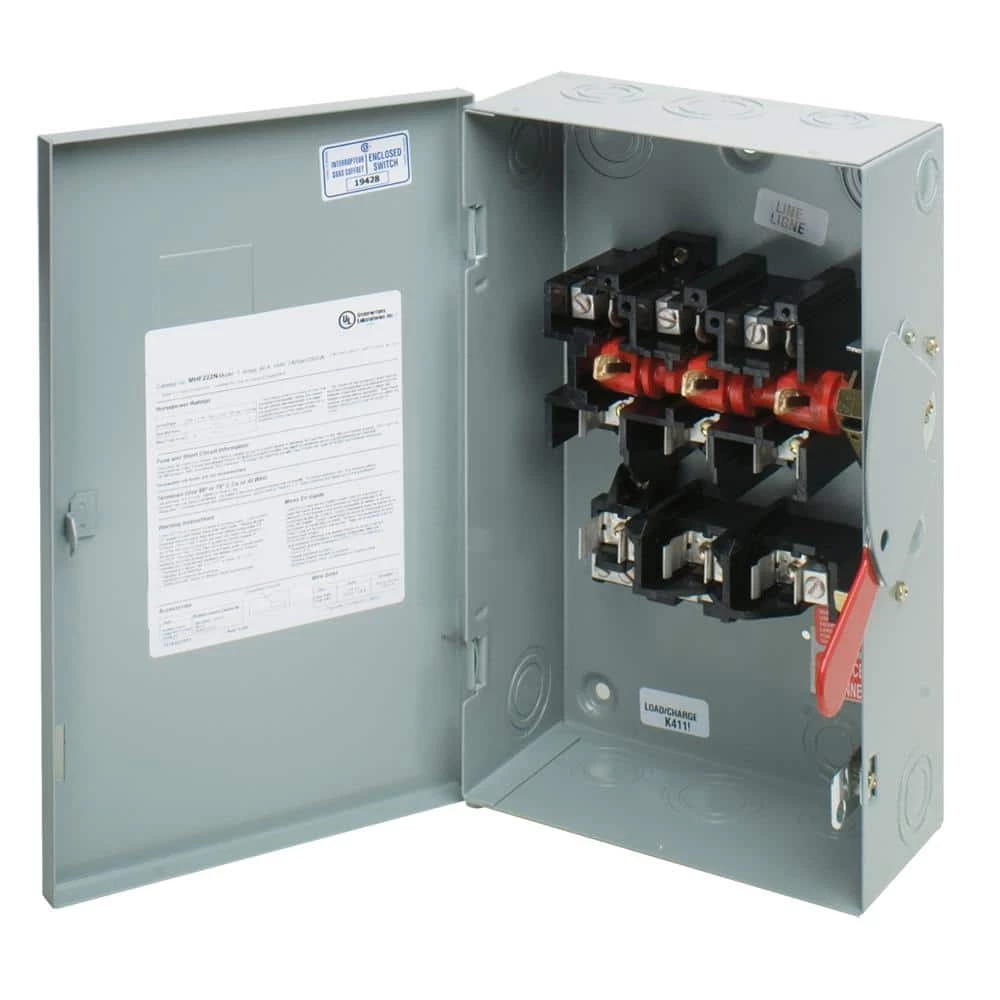

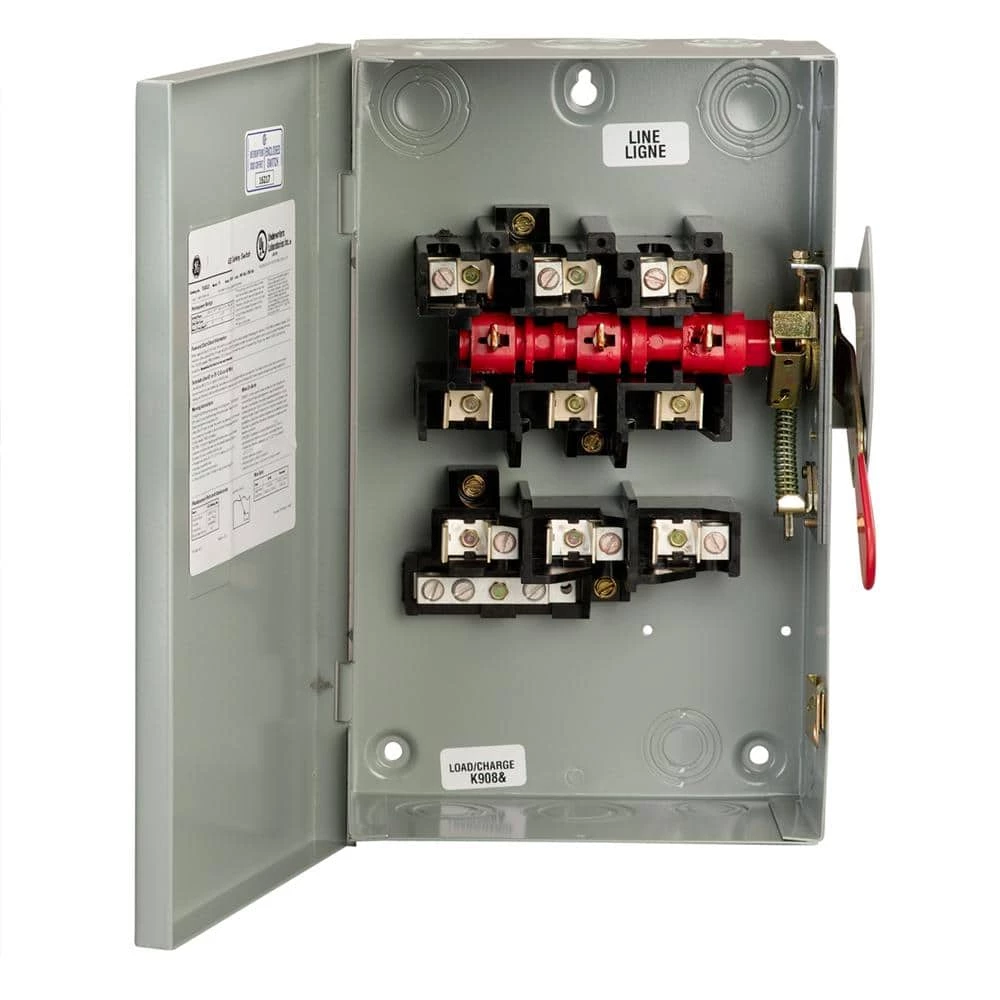

- Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
- 3-point mounting pattern simplifies installation and ganging in close quarters
- Plated stationary and movable contacts deliver reliability and long life
- Plated blades provide visible confirmation of contact position
- 3-pole, 4 wire, 60 Amp, 240-Volt maximum
- UL listed short-circuit rating of 10,000 RMS symmetrical Amp
- CSA listed and ANSI certified
- Accepts class H, K and R type fuses
| Automatic/Manual | Manual |
|---|---|
| Power Distribution Features | Fusible |

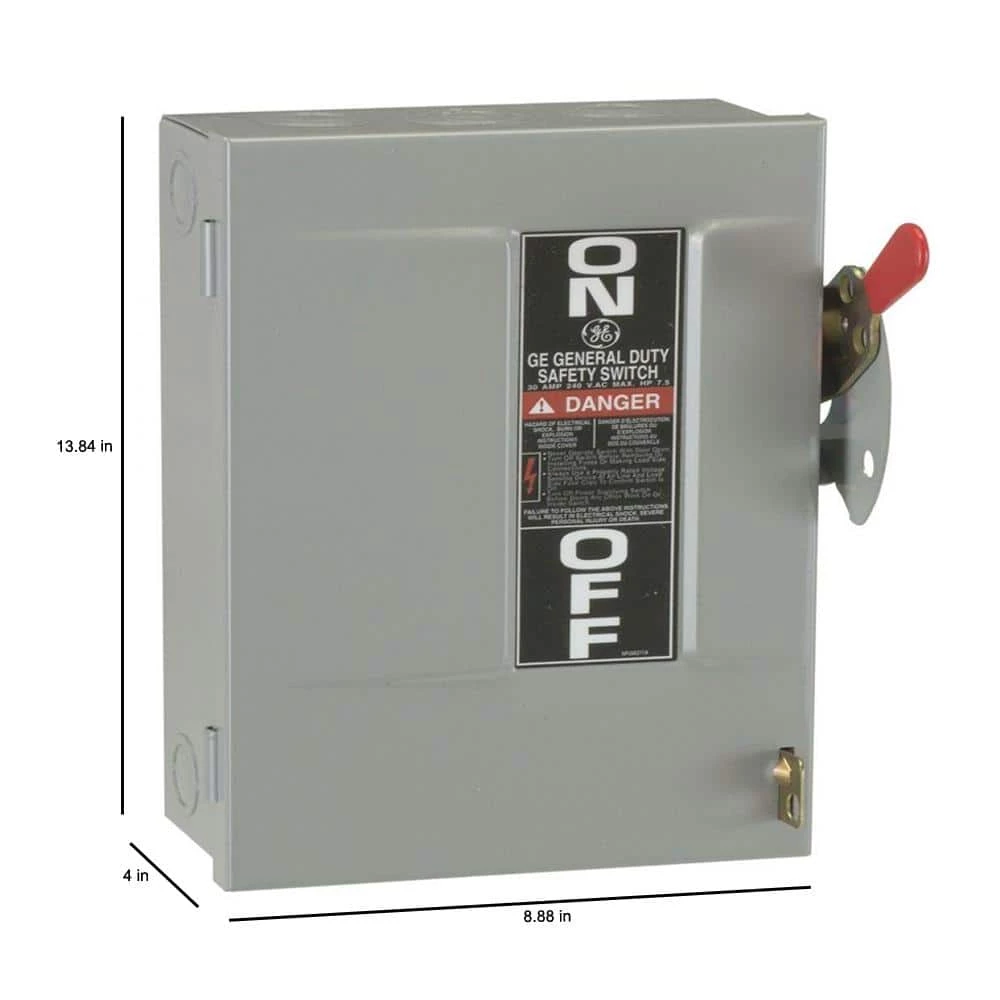

| Product Height (in.) | 13.73 |
| Product Depth (in.) | 7.88 |
| Manufacturer Warranty | One year warranty from first use |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 240 |
| Returnable | 90-Day |
| Product Weight (lb.) | 9.5 |
| Phase Type | 3 Phase |
| Electrical Product Type | Disconnect |
| NEMA Configuration Receptacle | No Receptacle |
| NEMA Configuration | NEMA 1 |
| Maximum Wattage | 0 W |
| Maximum Amperage (amps) | 60 |
| Indoor/Outdoor | Indoor |
| Fused | Fused |
| Features | Mountable,On/Off Switch,Overload Protection,Short Circuit Protection |
| Product Width (in.) | 8.88 |
