Original price was: $122.89.$73.73Current price is: $73.73.
Bolt to the bus connections of load centers and lighting panels
UL listed HACR (heating, air conditioning and refrigeration)
Internal common trip
- Get the quality you deserve, for less.
- Safe and Secure Payments, Always
- Shop the Best Quality Online
- The quality you expect, the service you deserve.

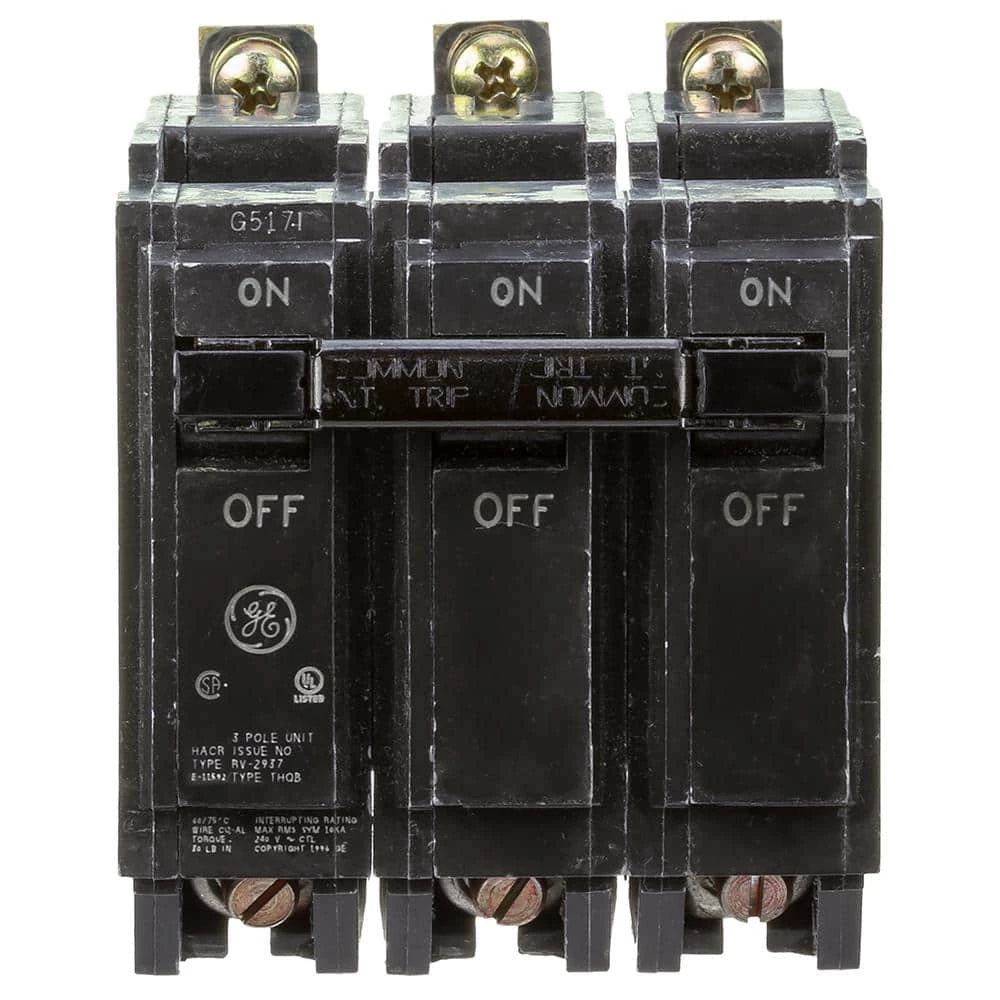

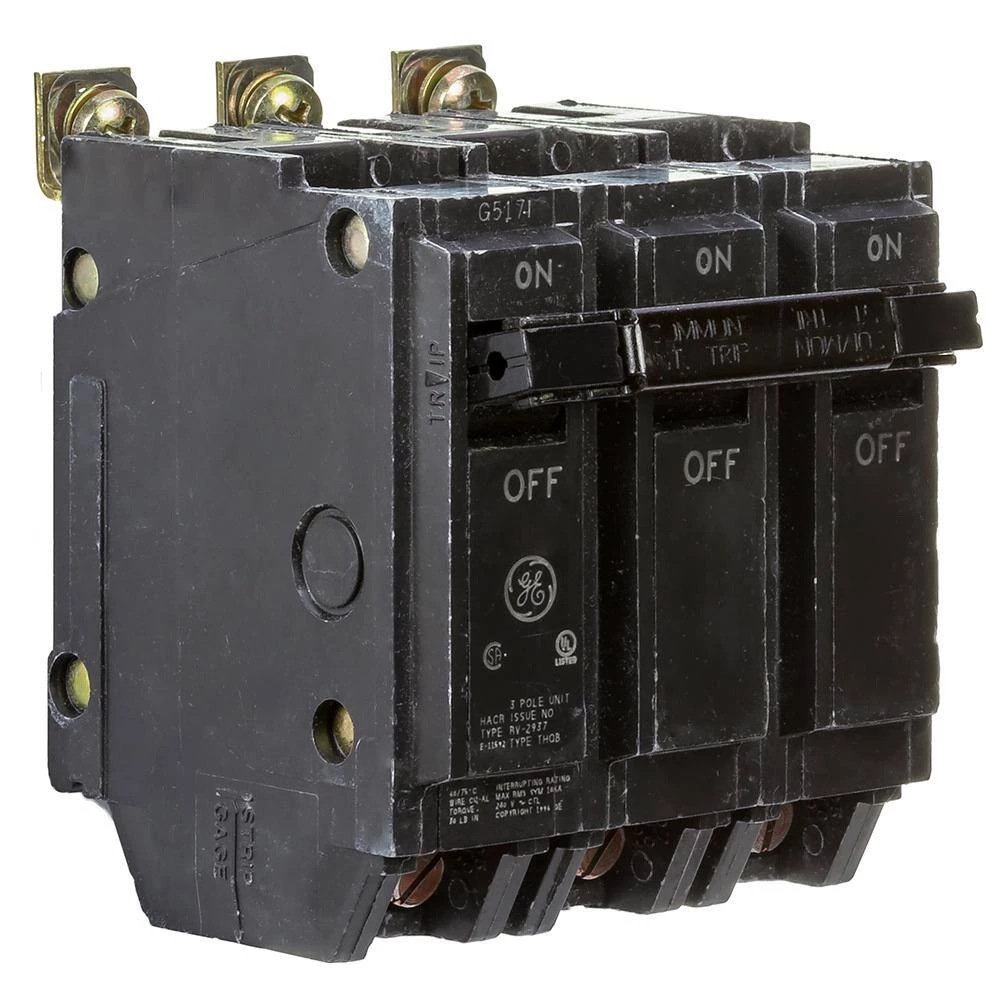

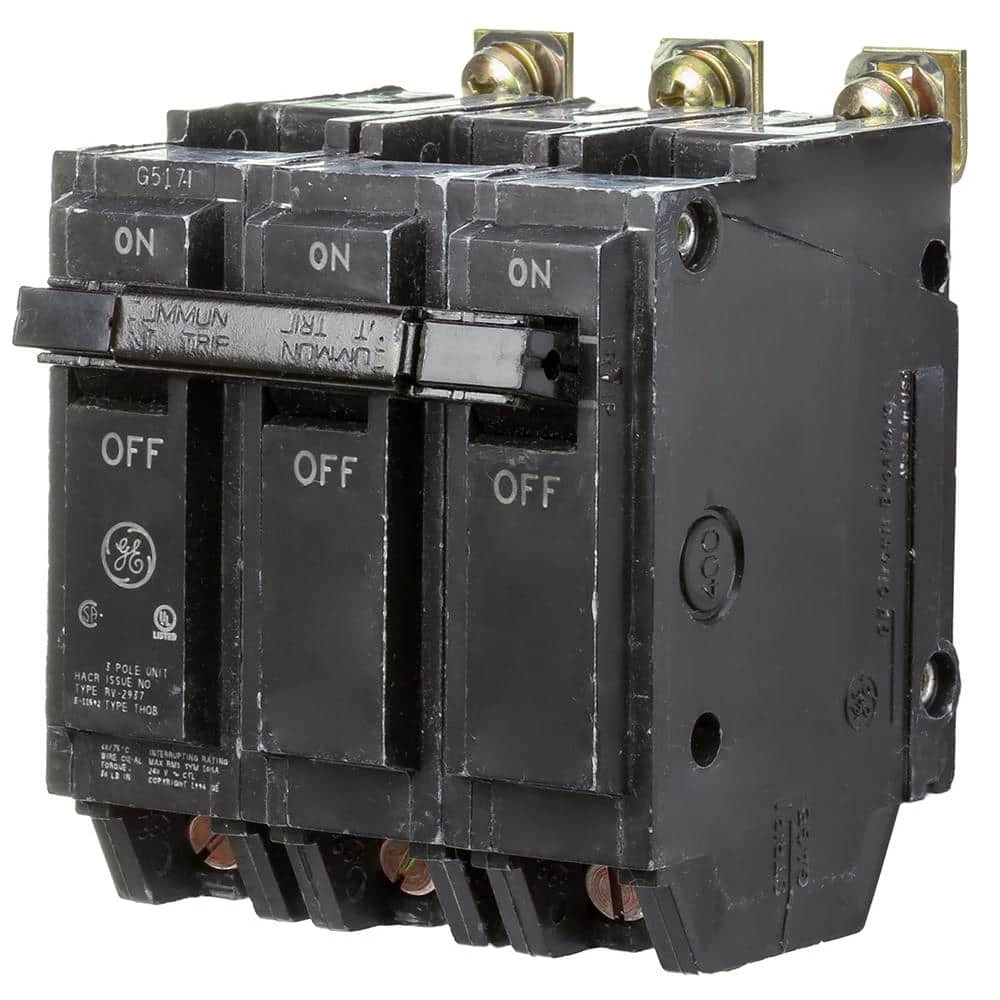

The GE Q line circuit breakers are 1 in. W per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels. All Q Line circuit breakers feature Quick-make and Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability.
- THQB breakers are compatible with type AQ and AQC panel boards
- Breaker trips to the center position
- 120 VAC, 120 and 240 Vac, 240 Vac
- 10 kAIC interrupting rating
- Case is made of heat-resistant thermoset for stability and structural integrity
- Meets NEMA standards
- ANSI certified, CSA and UL listed
| Breaker Type | Triple Pole |
|---|---|
| Electrical Product Type | Breaker |
| Interruption Type | Standard Trip |
| Maximum Amperage (amps) | 45 |
| Mounting Type | Bolt On |
| Number of Poles | 3 |
| Pack Size | 1 |
| Power Distribution Features | No Additional Features |
| Product Weight (lb.) | 1.14 |
| Returnable | 90-Day |
| Voltage (volts) | 240 |
| Certifications and Listings | ANSI Certified,CSA Listed,UL Listed |
| Manufacturer Warranty | One year warranty from first use |
| Product Depth (in.) | 3.53 |
| Product Height (in.) | 3 |
| Product Width (in.) | 3 in |
