Original price was: $19.25.$12.32Current price is: $12.32.

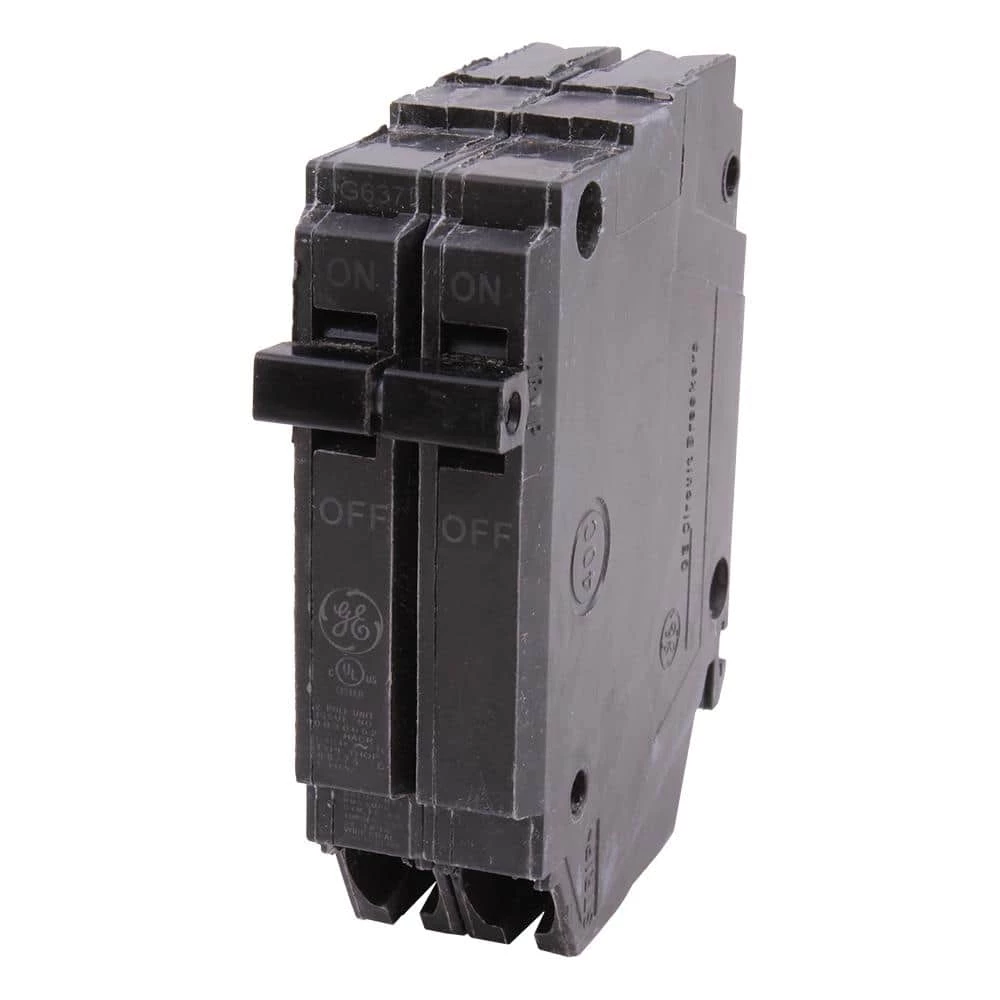

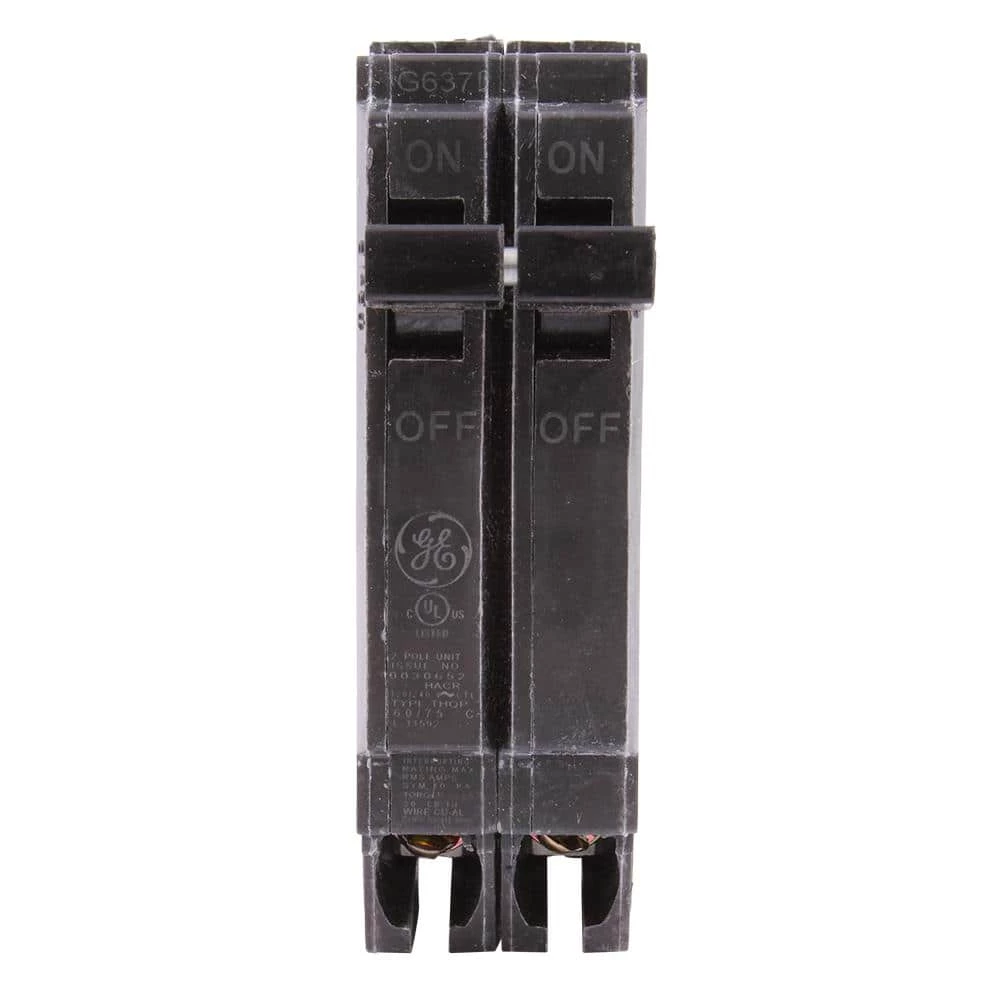

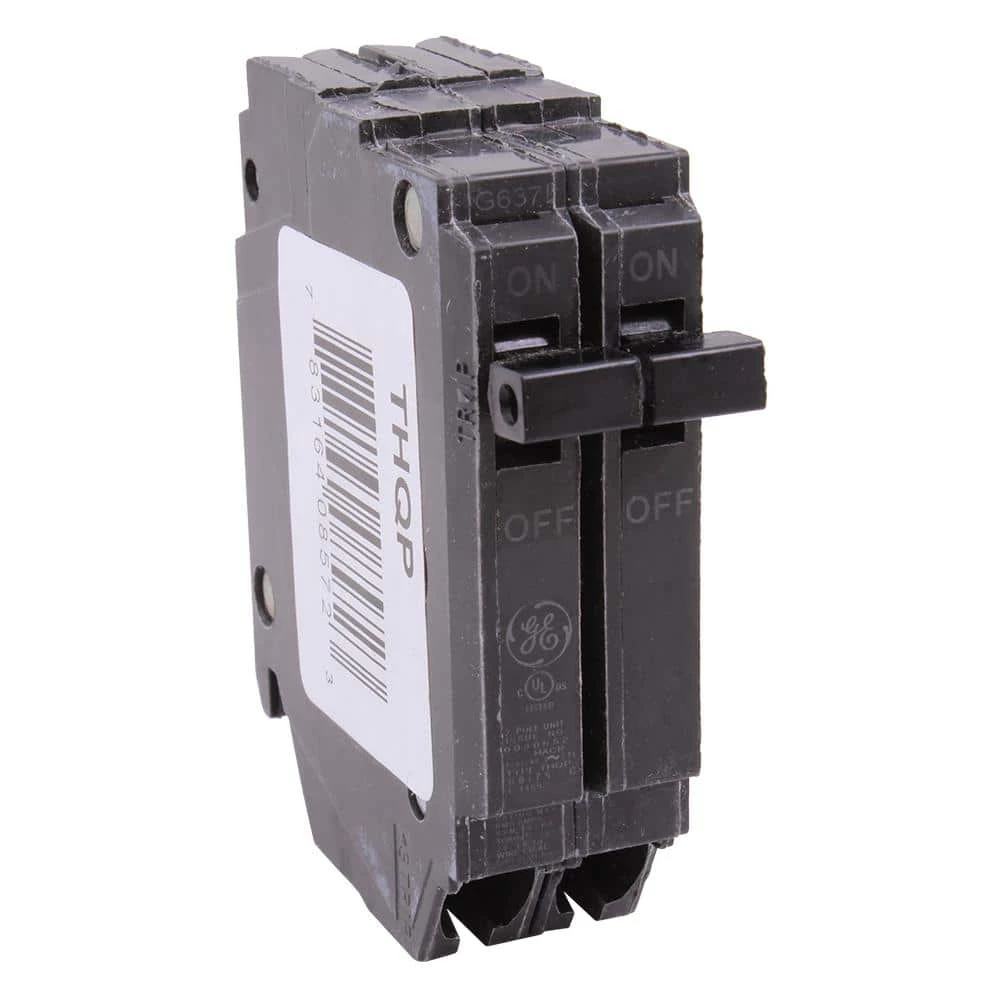

Q-line plug-in breaker for residential load centers
Internal common trip bar and box type terminals
Quick make, quick break switch
- Get the quality you deserve, for less.
- Safe and Secure Payments, Always
- Shop the Best Quality Online
- The quality you expect, the service you deserve.
GE’s Q-Line Circuit Breakers have Copper stabs, tin plated for corrosion resistance, make the connection reliable and permanent. Heat resistant thermoset cases and covers add stability and structural integrity. Trips are easy to spot because handles trip to the center position. The dedicated calibration screw is cemented to prevent shifting. The result is stable calibration for optimum performance.
- Lifetime warranty when used with Powermark gold load center
- Copper stabs
- Every breaker exceeds UL, NEMA, ANSI, CSA requirements
- Box type terminals
- 65 degree C/75 degree C conductor rating
| Breaker Type | Double Pole |
|---|---|
| Electrical Product Type | Breaker |
| Interruption Type | Standard Trip |
| Maximum Amperage (amps) | 45 |
| Mounting Type | Plug-On |
| Number of Poles | 2 |
| Pack Size | 1 |
| Power Distribution Features | No Additional Features |
| Product Weight (lb.) | .4 |
| Returnable | 90-Day |
| Voltage (volts) | 240 |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | One year warranty from first use |
| Product Depth (in.) | 2.4 |
| Product Height (in.) | 3.3 |
| Product Width (in.) | 1 |
