Original price was: $70.91.$52.47Current price is: $52.47.
Highly visible ON/OFF label and easy to grip red handle
Unobstructed gutter and self-leveling, 3-point mounting system
Integral cover interlock for added protection
- Get the quality you deserve, for less.
- Safe and Secure Payments, Always
- Shop the Best Quality Online
- The quality you expect, the service you deserve.

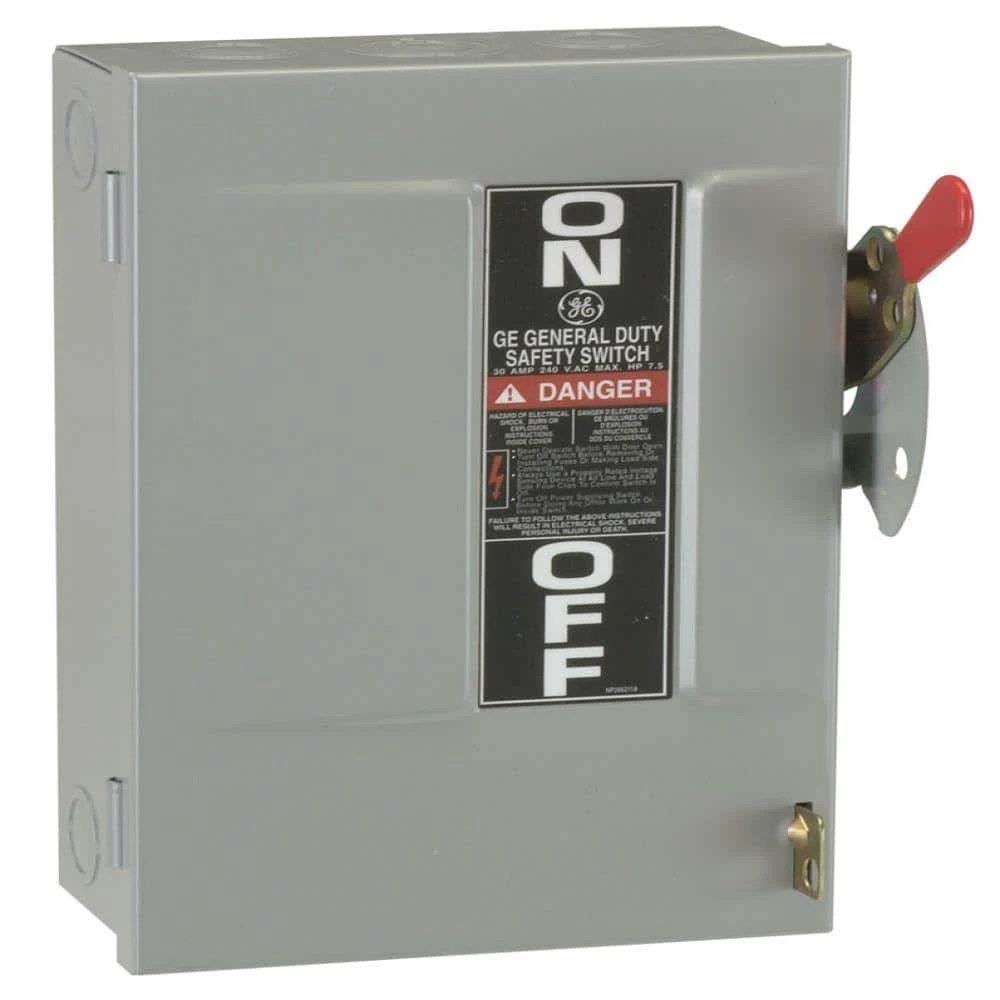

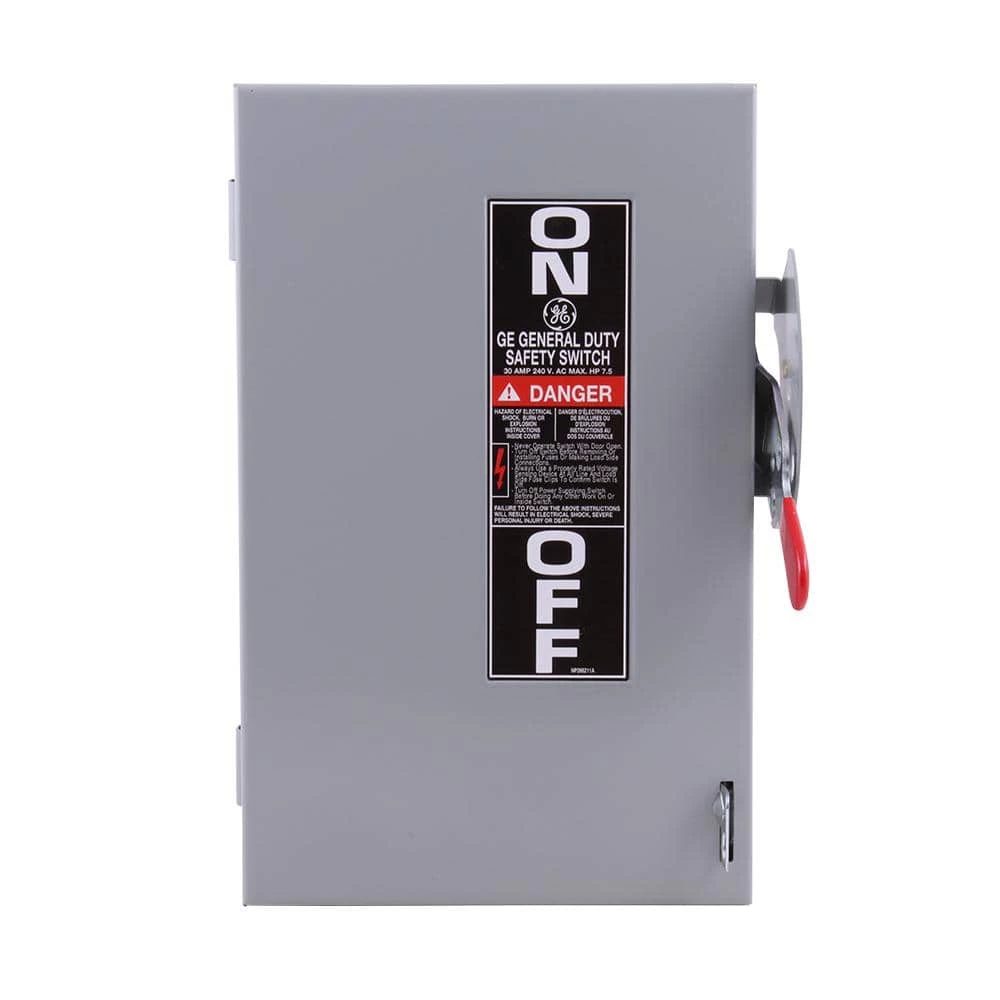

This GE 30 Amp 240-Volt Fusible Indoor general-Duty Safety Switch is designed for residential and light commercial applications. This safety switch features a highly visible on/off label for safety and a bright red handle for easy recognition and gripping. With a wide, unobstructed gutter and removable interior, this safety switch allows for quick and easy wire pulling and lug connections.
- Type-TG general-duty safety switch designed for residential and light commercial applications where duty is not severe
- Type-1 enclosure offers a durable polyester powder-coat finish for indoor applications
- Highly visible on/off label helps ensure safety and gives a clean, modern appearance
- Bright red handle is easy to see and grip
- Direct-drive, quick-make, quick-break mechanism snaps the contacts open and closed providing positive on/off indication while prolonging switch life

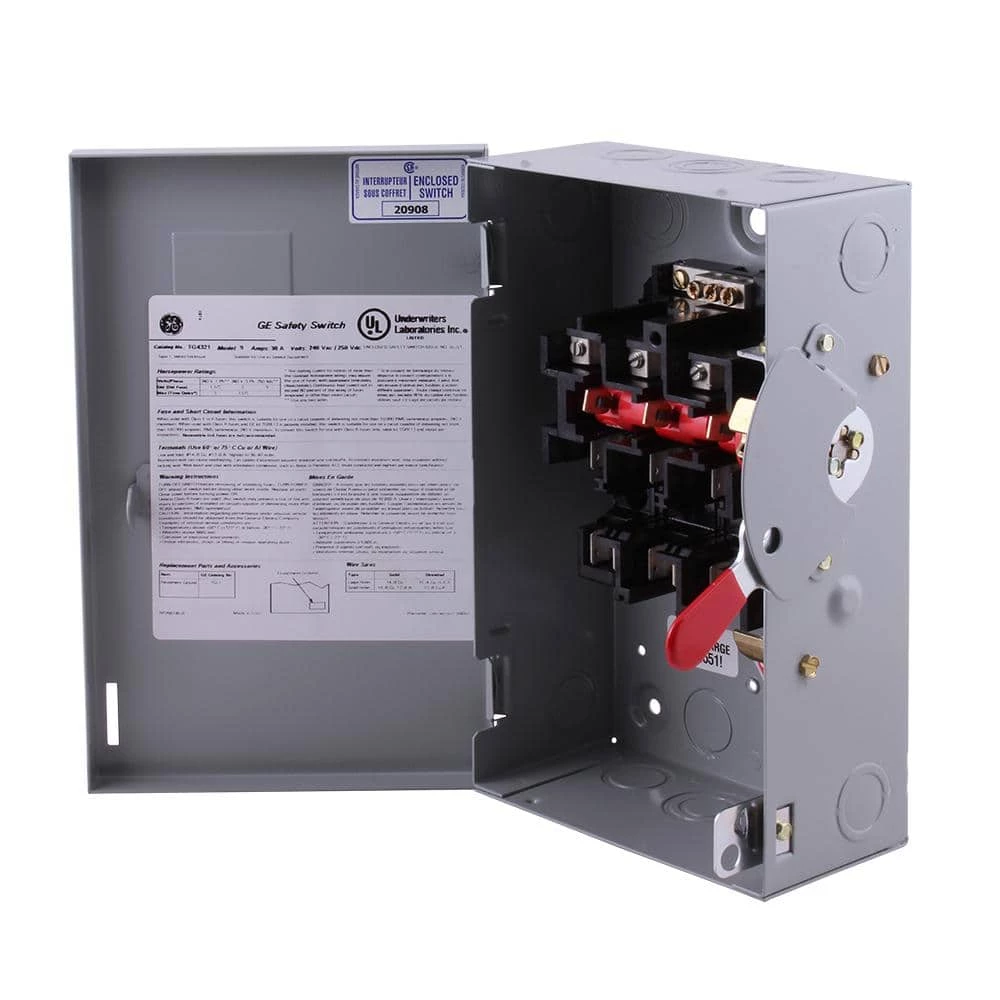

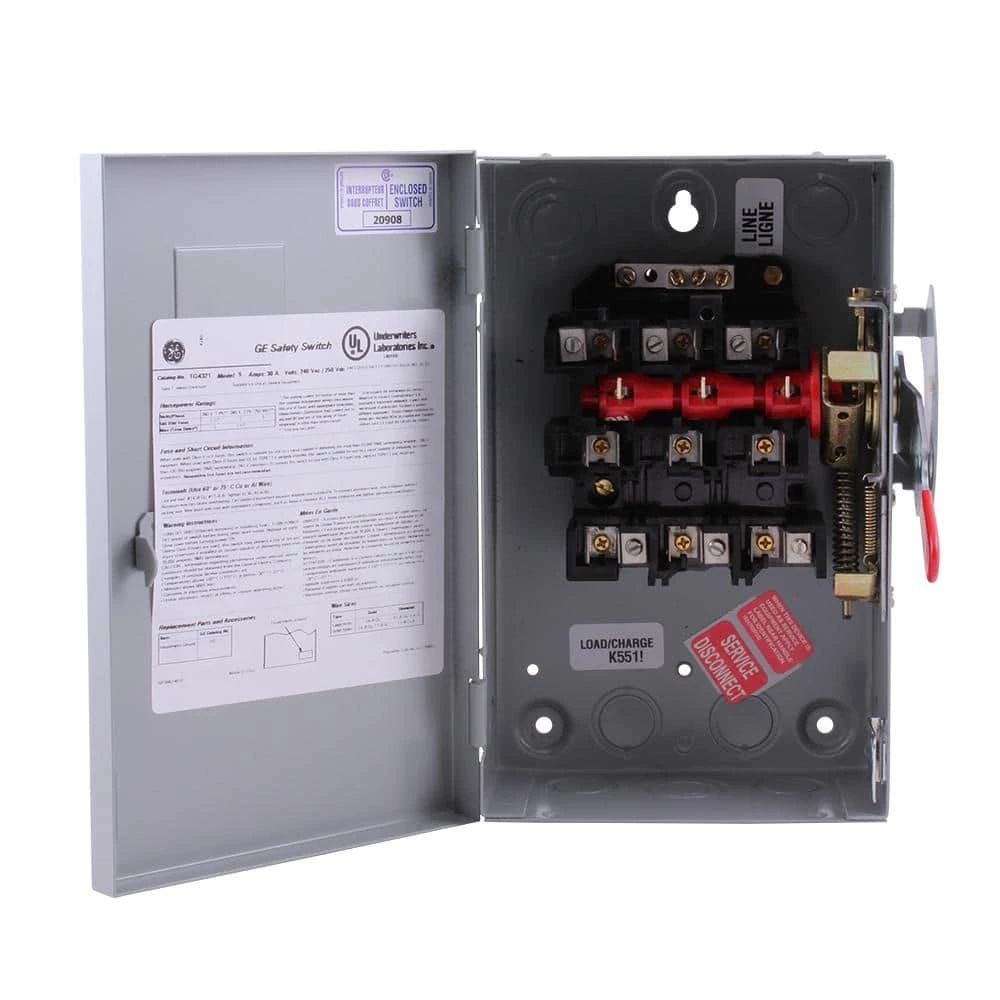

- Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy

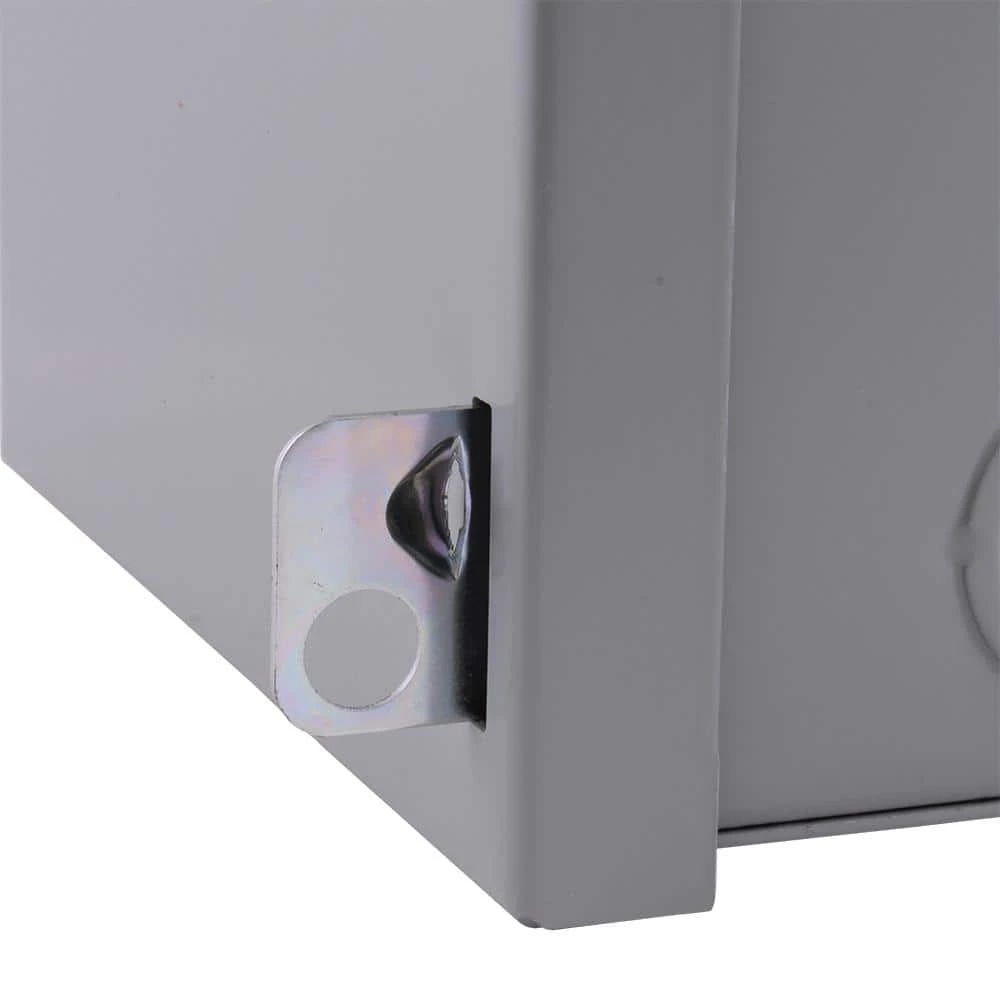

- 3-point mounting pattern simplifies installation and ganging in close quarters
- Plated stationary and movable contacts deliver reliability and long life
- Accepts class H, K and R type fuses
- Plated blades provide visible confirmation of contact position
- 3 pole, 4 wire, 30 Amp, 240-Volt maximum
- UL listed short-circuit rating of 10,000 rms symmetrical Amp
- CSA listed and ANSI certified
| Automatic/Manual | Manual |
|---|---|
| Power Distribution Features | Fusible |
| Product Height (in.) | 10.15 |
| Product Depth (in.) | 6.25 |
| Manufacturer Warranty | One year warranty from first use |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 240 |
| Returnable | 90-Day |
| Product Weight (lb.) | 5.25 |
| Phase Type | 3 Phase |
| Electrical Product Type | Disconnect |
| NEMA Configuration Receptacle | No Receptacle |
| NEMA Configuration | NEMA 1 |
| Maximum Wattage | 0 W |
| Maximum Amperage (amps) | 30 |
| Indoor/Outdoor | Indoor |
| Fused | Fused |
| Features | Mountable,On/Off Switch,Overload Protection,Short Circuit Protection |
| Product Width (in.) | 6.9 |
