Original price was: $19.97.$13.18Current price is: $13.18.
Air Conditioner Disconnect; NEMA 3R Steel enclosure
Pullout type
Fusible
- Get the quality you deserve, for less.
- Safe and Secure Payments, Always
- Shop the Best Quality Online
- The quality you expect, the service you deserve.

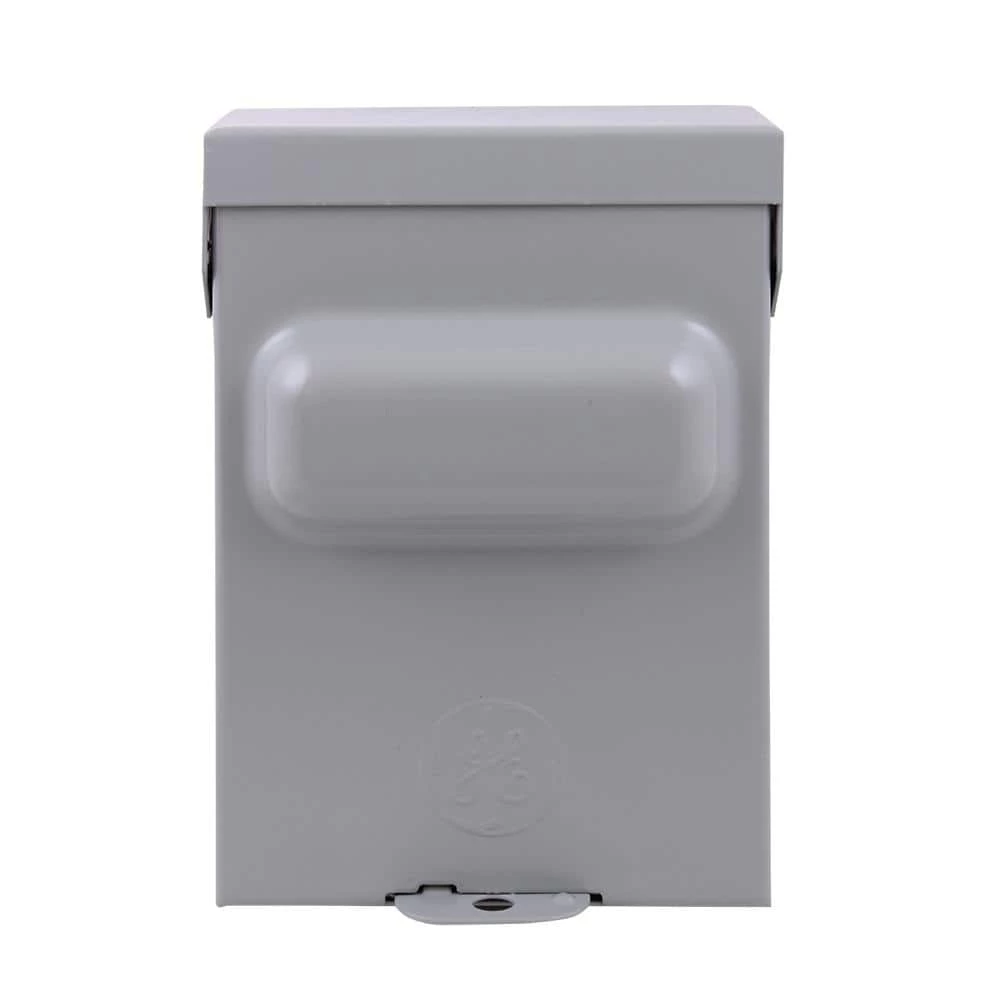

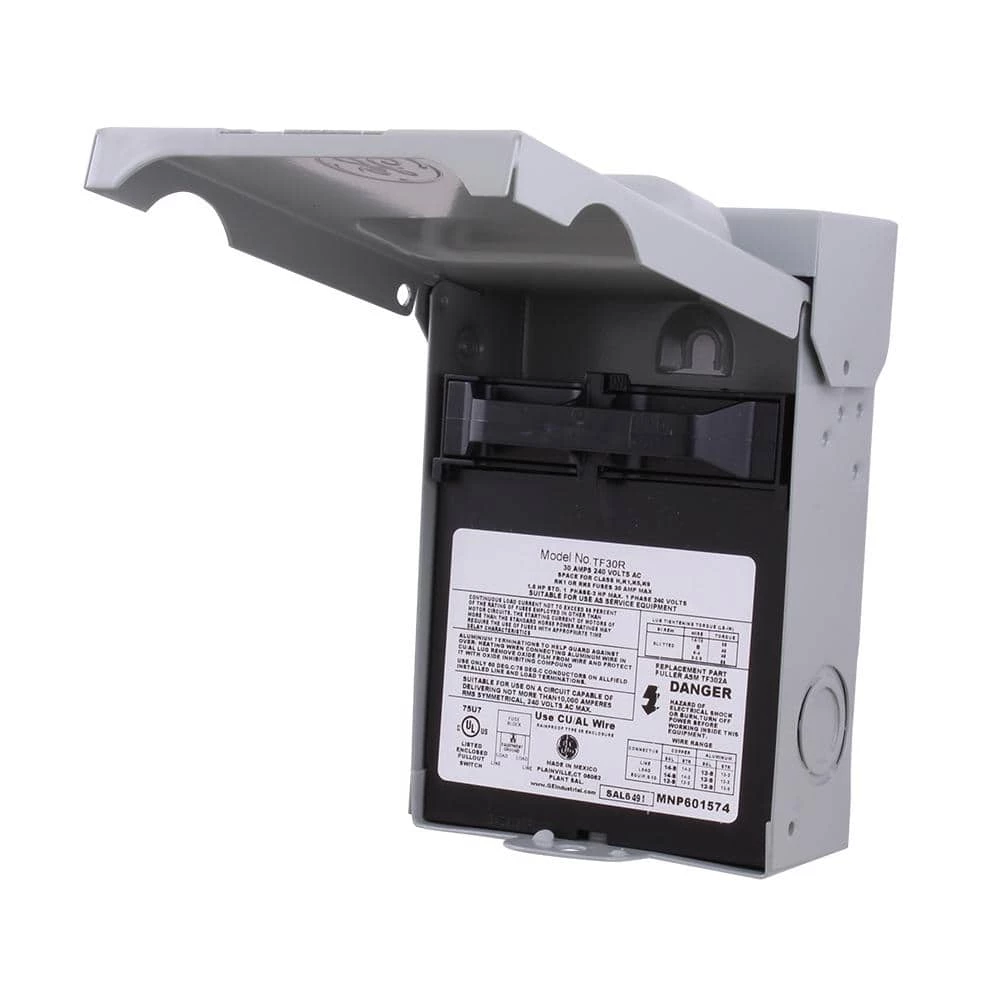

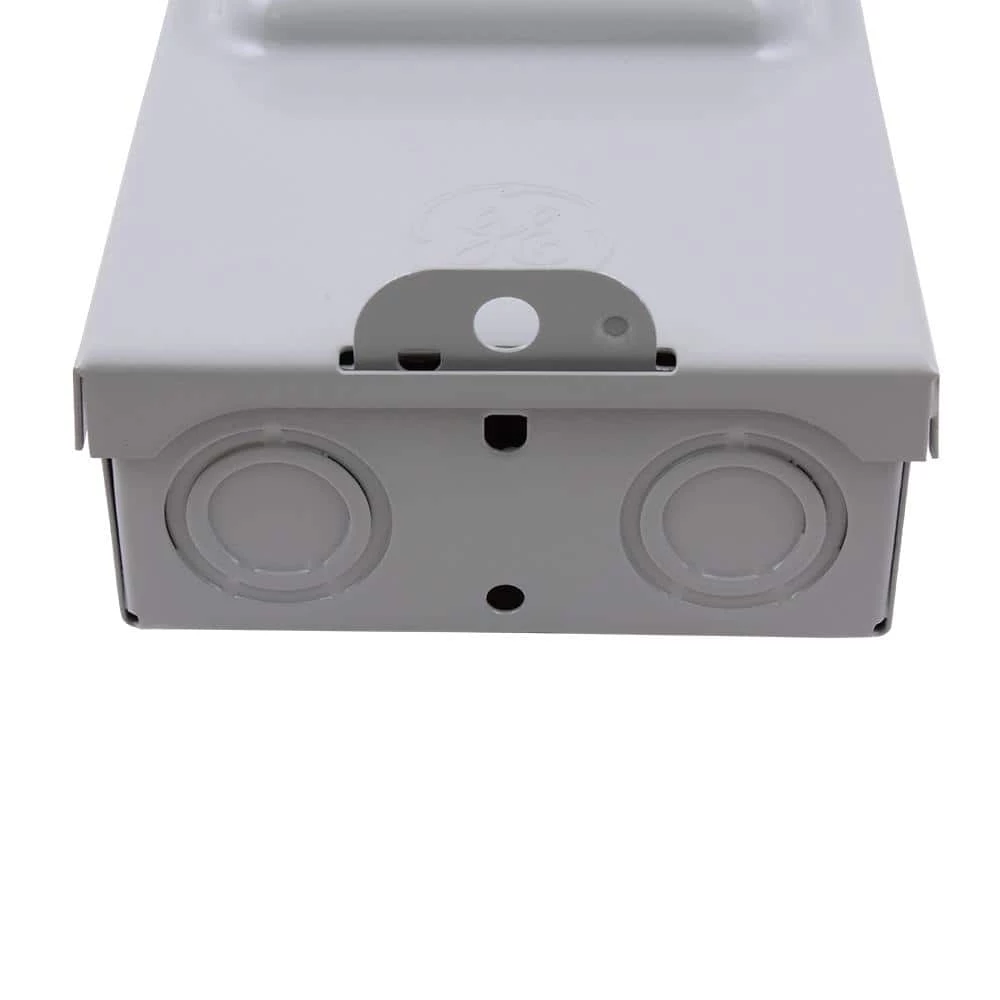

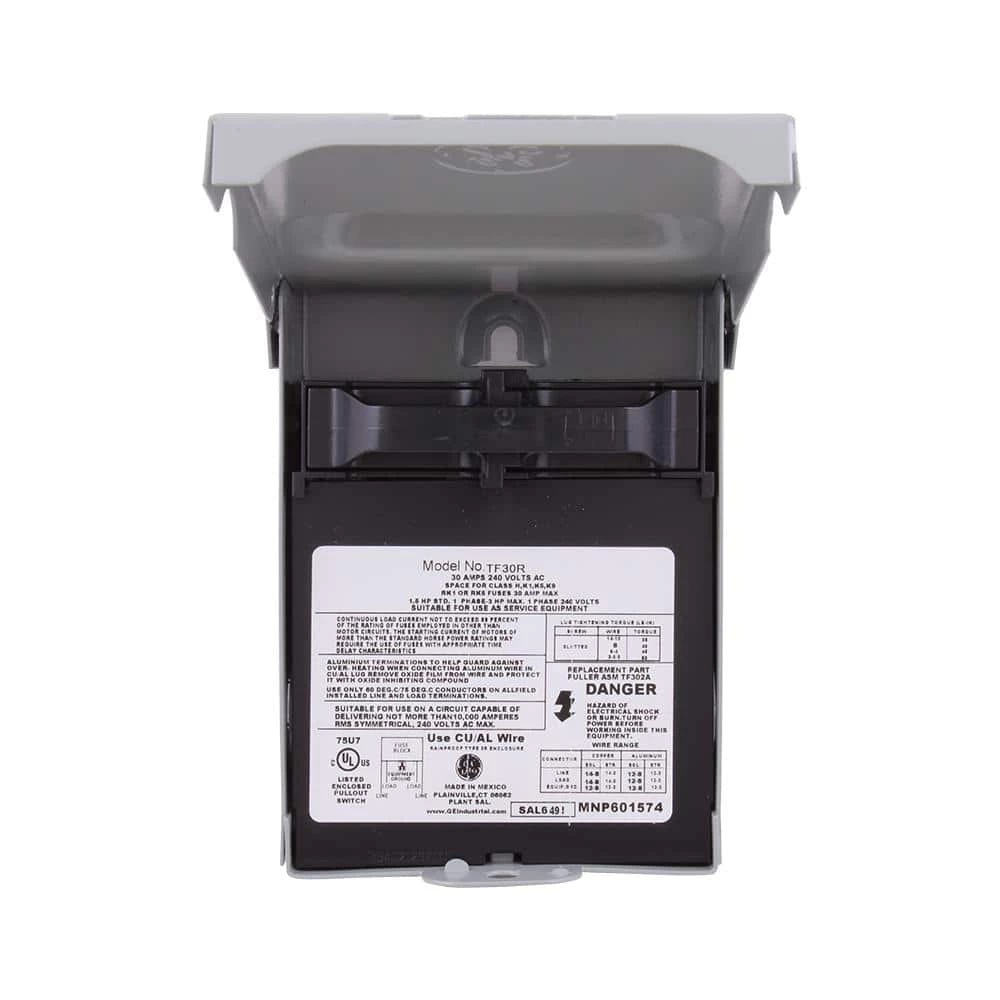

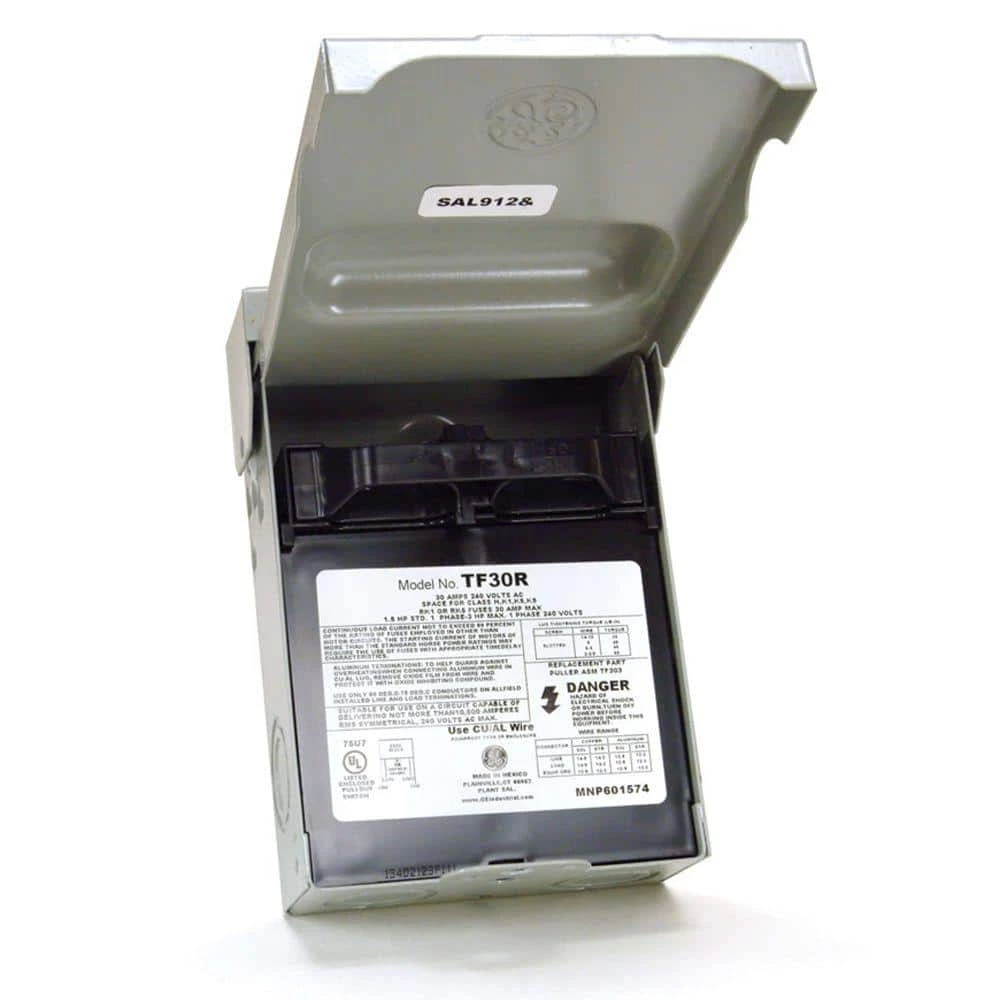

The GE 30 Amp 120/240-Volt 240-Watt Fused (requires 2 fuses installed on the back side of the puller). AC Disconnect has a NEMA 3R-rated steel enclosure that is both rust- and corrosion resistant for outdoor use. This safety switch is intended to disconnect power from an air-conditioning unit and uses lug wire range AWG #14 – 3 copper/aluminum. This single-phase disconnect is ANSI certified and UL listed with a maximum load of 240-Volt.
- Use to disconnect power from an air-conditioning unit
- NEMA 3R-rated steel enclosure for outdoor use
- Rust- and corrosion resistant
- Fusible – requires 2 fuses that are installed on the back side of the puller
- Single phase
- Lug wire range is AWG #14 – 3 copper/aluminum
- 120/240-Volt
- 3 HP maximum
- The fuse classes accepted are: H, K1, K5, K9, RK1 and RK5 up to 30 amps
- ANSI certified and UL listed
| Electrical Product Type | Disconnect |
|---|---|
| Product Weight (lb.) | 2.56 |

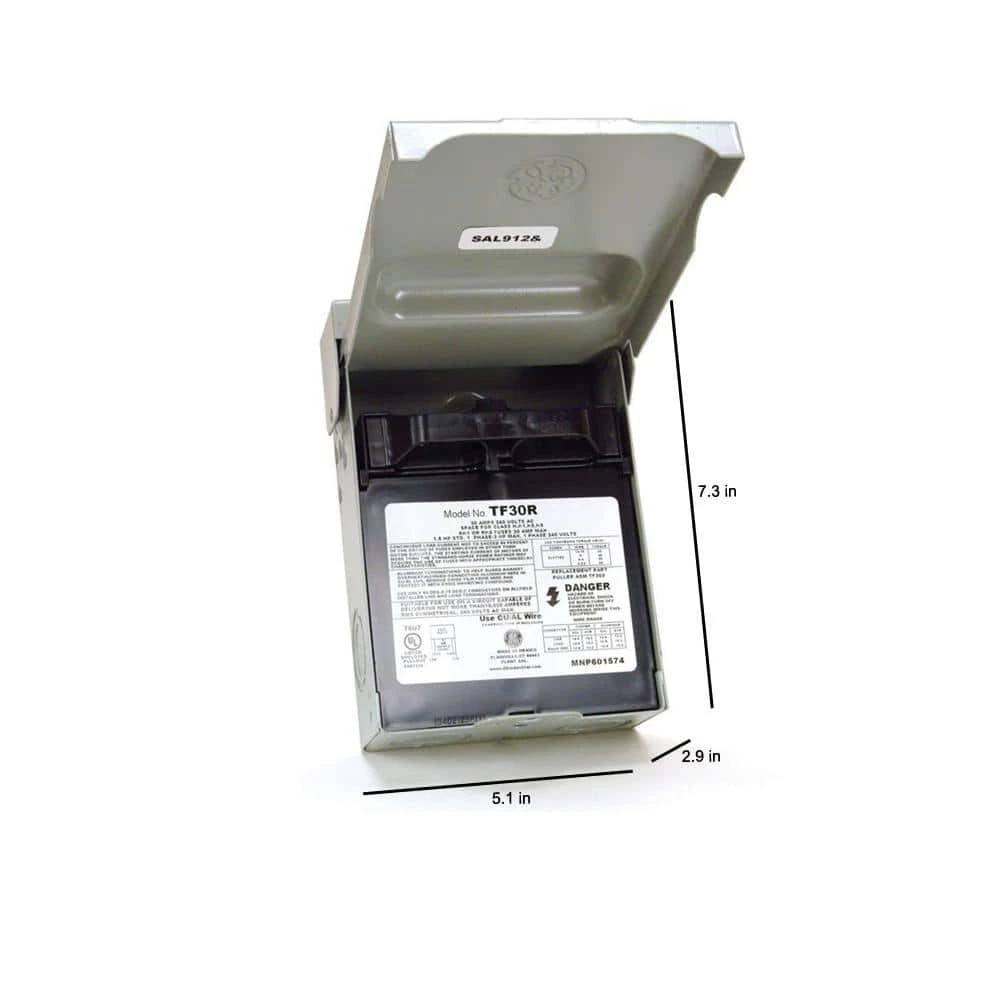

| Product Height (in.) | 8.2 |
| Product Depth (in.) | 3.5 |
| Manufacturer Warranty | One year warranty from first use |
| Certifications and Listings | ANSI Certified,UL Listed |
| Voltage (volts) | 240 |
| Type | Air Conditioner |
| Returnable | 90-Day |
| Power Distribution Features | Fusible |
| Fuse Type | Cartridge |
| Phase Type | 1 Phase |
| NEMA Configuration Receptacle | No Receptacle |
| NEMA Configuration | NEMA 3R |
| Maximum Wattage | 240 W |
| Maximum Amperage (amps) | 30 |
| Indoor/Outdoor | Outdoor |
| Fused | Fused |
| Product Width (in.) | 5.3 |
