Original price was: $108.00.$65.88Current price is: $65.88.
Indoor NEMA 1 enclosure (combination surface/flush)
Main lugs are factory installed; convertible to main breaker
Includes 4 select circuit breakers
- Get the quality you deserve, for less.
- Safe and Secure Payments, Always
- Shop the Best Quality Online
- The quality you expect, the service you deserve.

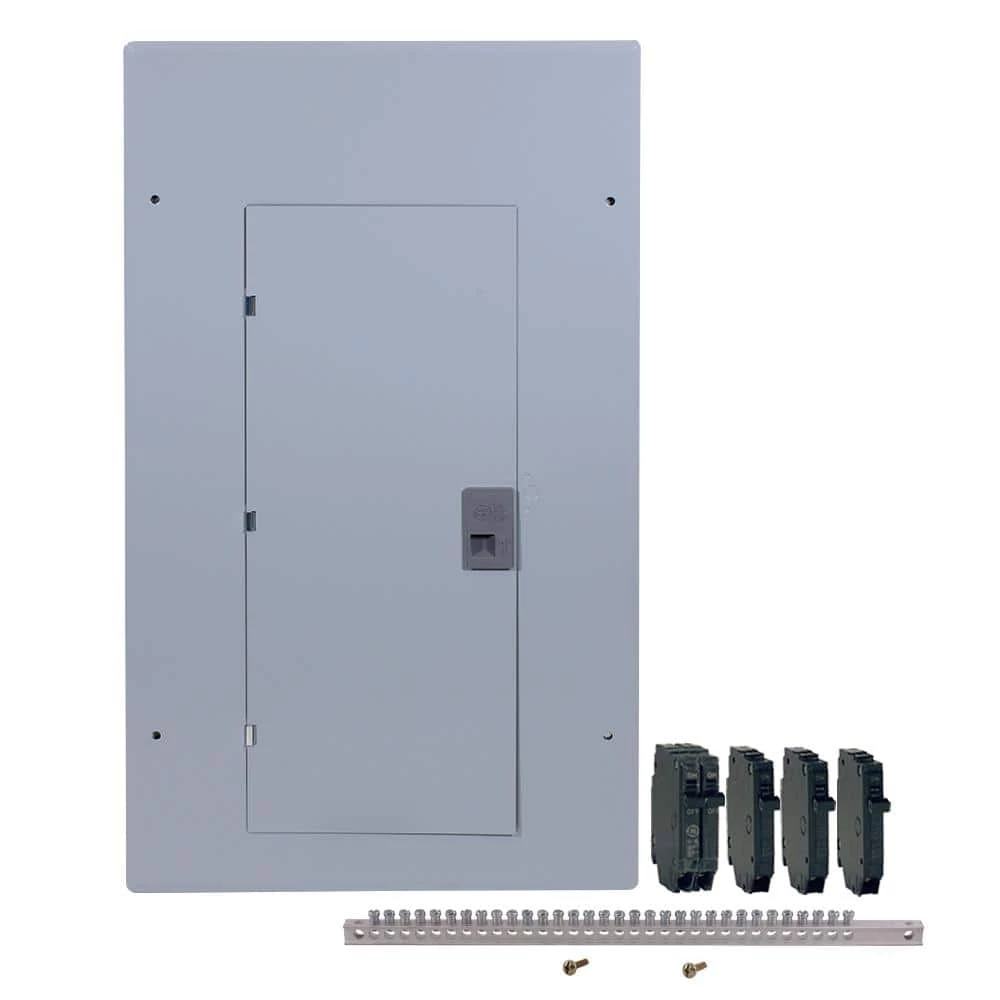

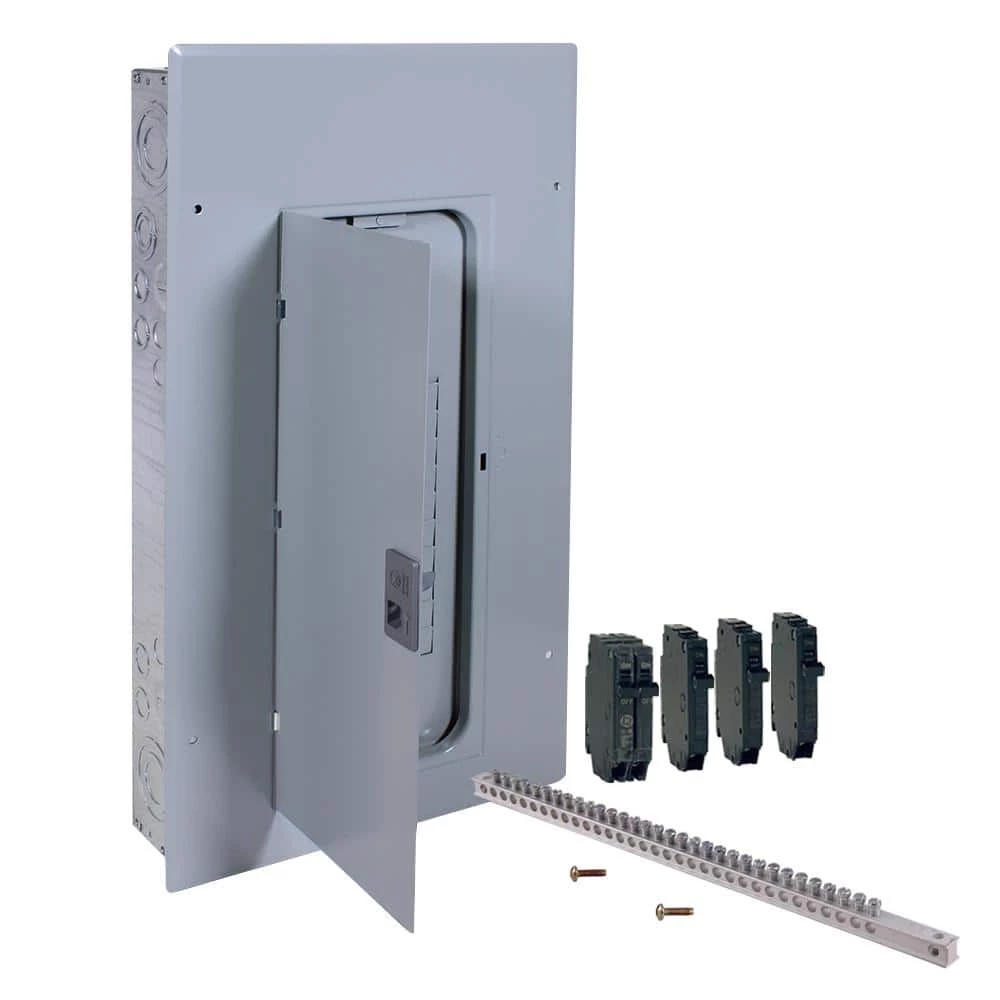

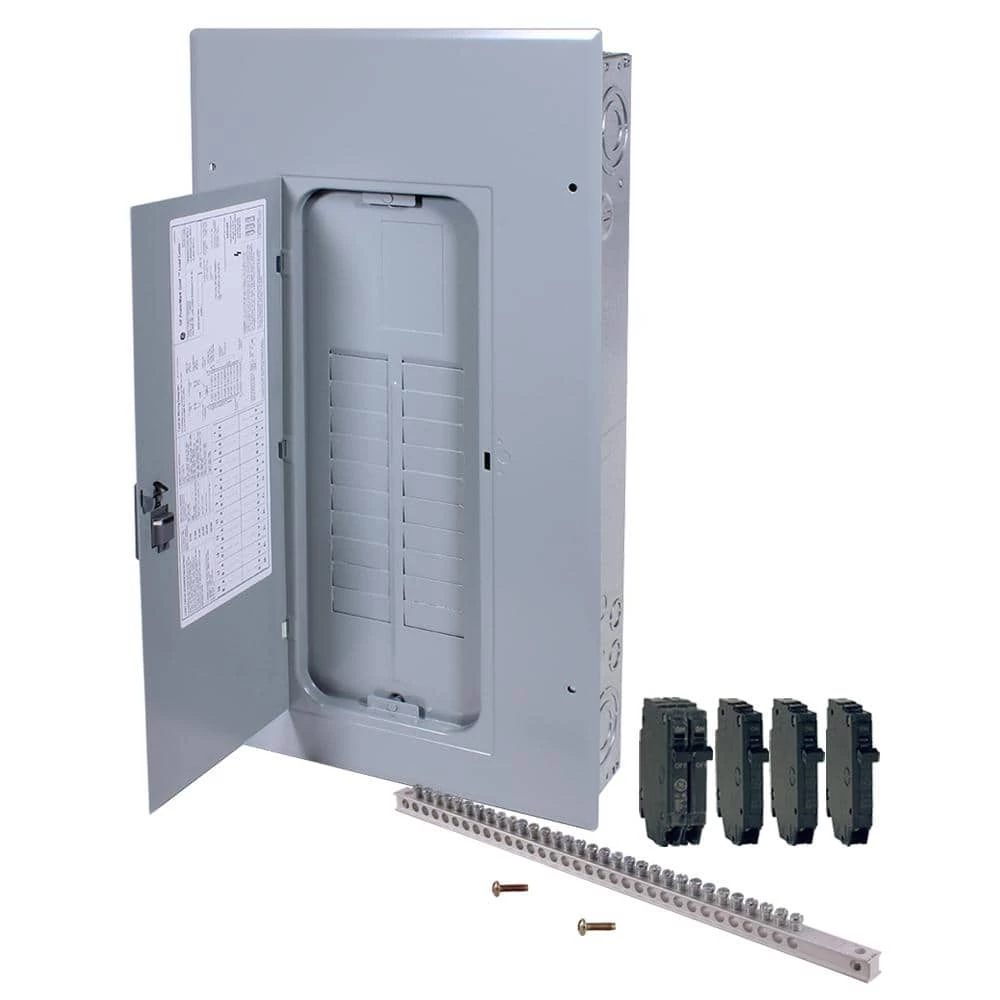

The GE 200 Amp 20-Space 40-Circuit Main Lug Indoor Load Center Contractor Kit is pre-packaged with a selection of circuit breakers and ground bar. The UL-listed load center has holes rated 100% split neutral on each side that are compatible with #14-4 wire. The center is designed and built for faster installation and a more dependable performance. This unit is compatible with GFCIs, AFCIs, Dual Function and standard circuit breakers.
- Features a copper bus for increased conductivity
- Galvanized box for rust resistance with a self-adjusting dead-front cover
- Features full-length neutral bars for faster and easier wiring
- Kit includes 3 THQP120 20 Amp single-pole circuit breakers, 1 THQP230 30 Amp double-pole circuit breaker and ground bar
| Electrical Product Type | Main Lug/ Main Lug Kit |
|---|---|
| Phase Type | 1 Phase |

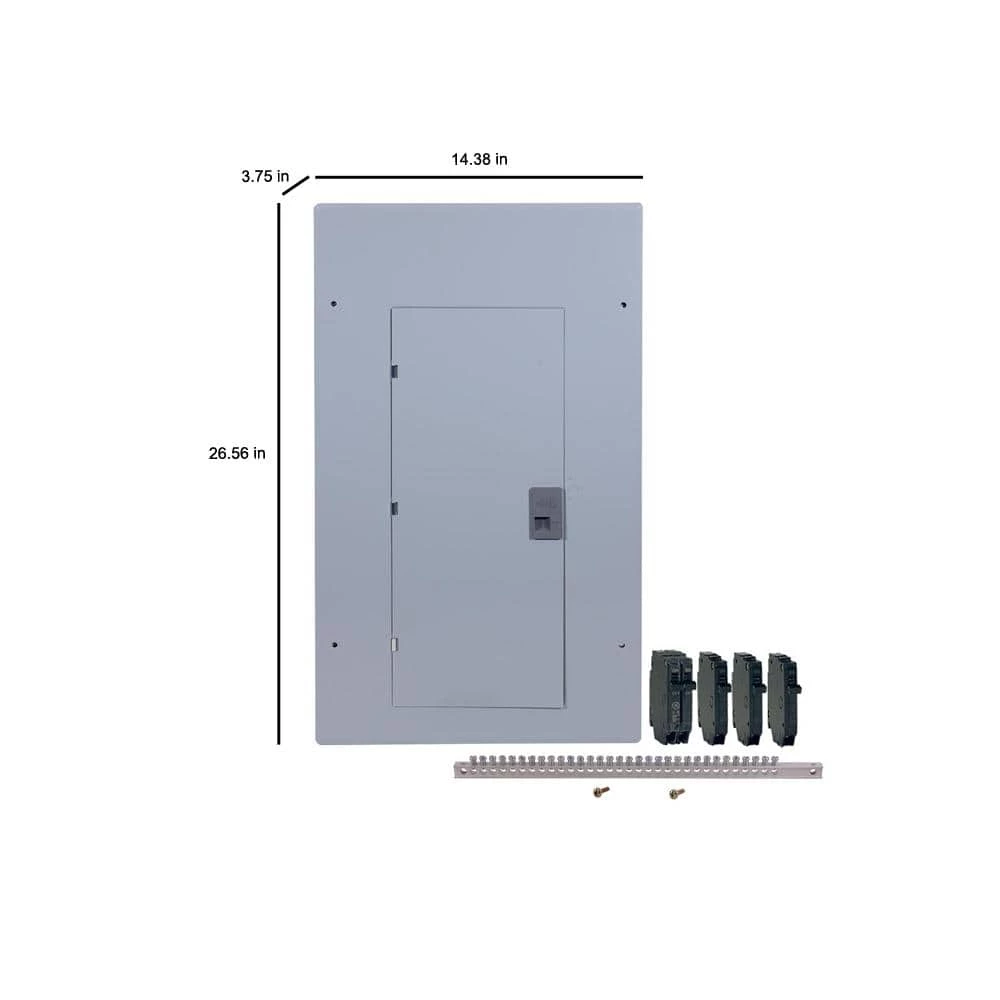

| Load center height (in.) | 26.56 |
| Load center depth (in.) | 3.75 |
| Manufacturer Warranty | One year warranty from first use |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 240 |
| Returnable | 90-Day |
| Number of Spaces | 20 |
| Indoor/Outdoor | Indoor |
| Number of Circuits | 40 |
| NEMA Configuration | NEMA 1 |
| Mounting Type | Plug-On |
| Maximum Amperage (amps) | 200 |
| Load Center Type | Main Lug |
| Load Center Mounting Type | Flush,Surface |
| Load center width (in.) | 14.38 |
