Original price was: $88.70.$66.53Current price is: $66.53.
Indoor NEMA 1 enclosure
Main breaker is factory installed
Includes 4 select circuit breakers
- Get the quality you deserve, for less.
- Safe and Secure Payments, Always
- Shop the Best Quality Online
- The quality you expect, the service you deserve.

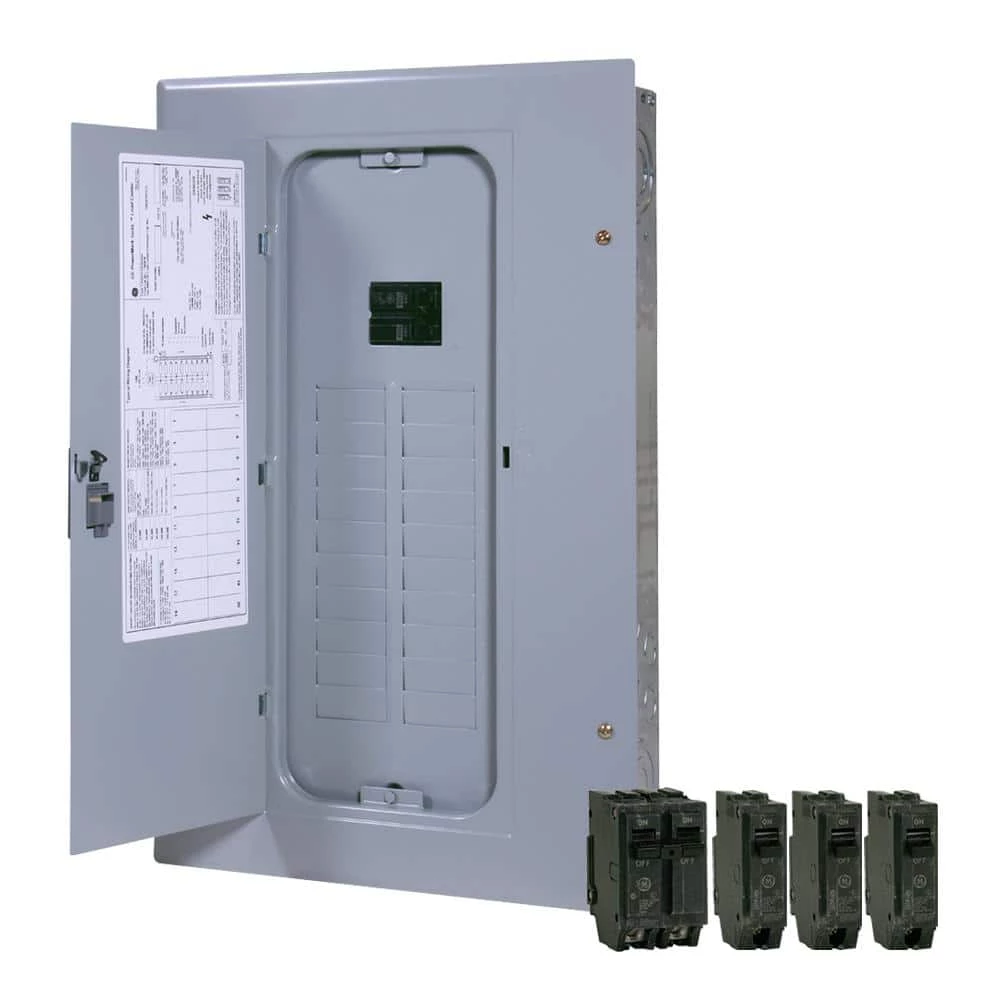

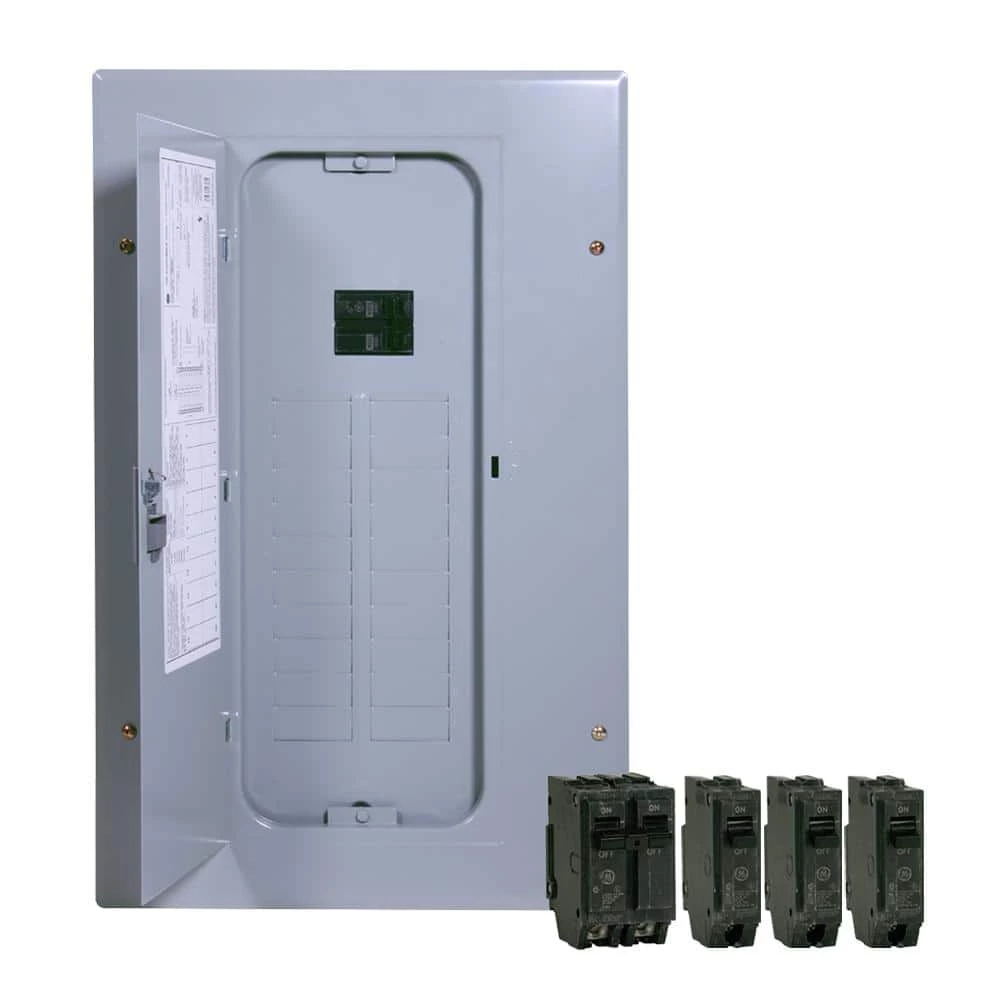

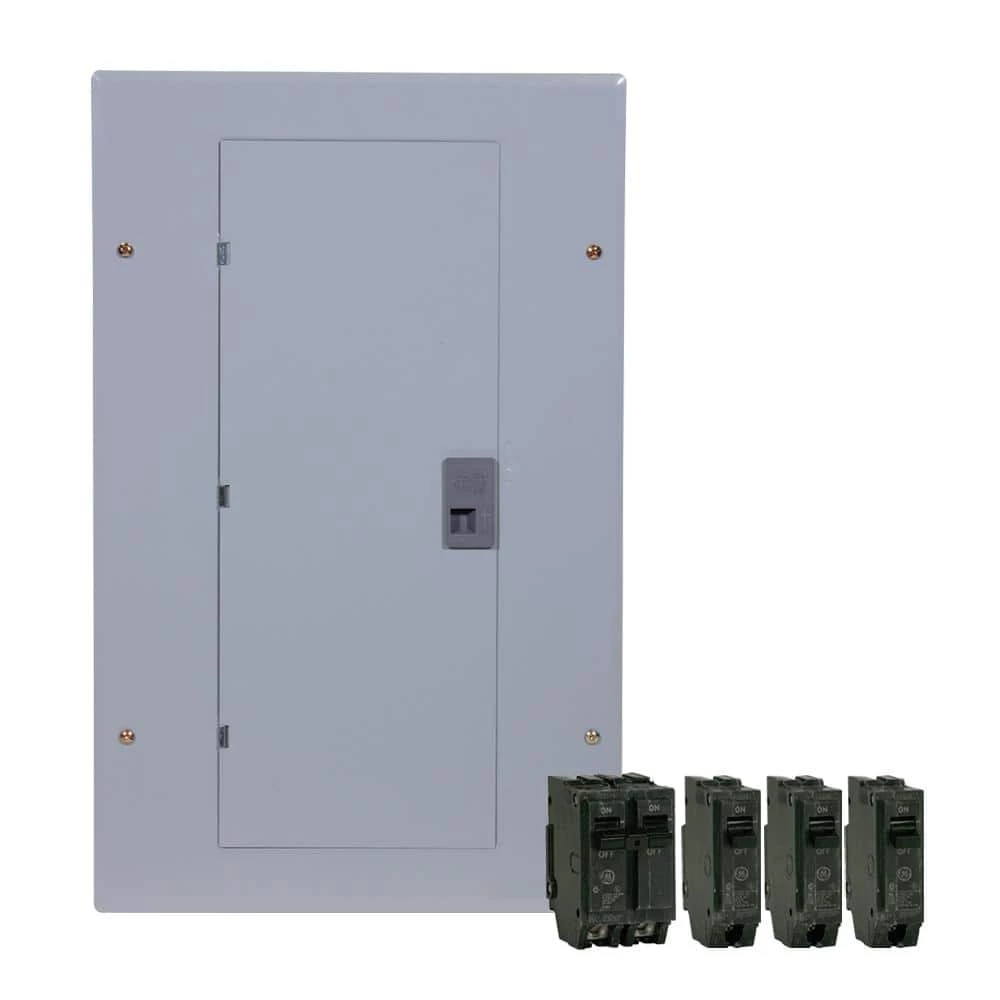

The GE 100 Amp 20-Space 20-Circuit Main Breaker Indoor Load Center Contractor Kit is pre-packaged with a selection of circuit breakers. The UL-listed load center has holes rated 100% split neutral on each side that are compatible with #14-4 wire. The breaker box is a single-phase, 3-wire unit with a factory-installed main breaker. The center is designed and built for faster installation and a more dependable performance. This unit is compatible with GFCIs, AFCIs, Dual Function and standard circuit breakers.
- Features a copper bus for increased conductivity
- Galvanized box for rust resistance with a self-adjusting dead-front cover
- Features full-length neutral bars for faster and easier wiring
- Kit includes 3 THQL1120 20 Amp single-pole circuit breakers and 1 THQL2130 30 Amp double-pole circuit breaker
| Electrical Product Type | Load Center and Breaker Kit |
|---|---|
| Product Weight (lb.) | 25 |
| Load center height (in.) | 23.13 |
| Load center depth (in.) | 3.75 |
| Manufacturer Warranty | One year warranty from first use |
| Certifications and Listings | UL Listed |
| Voltage (volts) | 240 |
| Returnable | 90-Day |
| Phase Type | 1 Phase |
| Indoor/Outdoor | Indoor |
| Number of Spaces | 20 |
| Number of Circuits | 20 |
| NEMA Configuration | NEMA 1 |
| Mounting Type | Plug-On |
| Maximum Amperage (amps) | 100 |
| Load Center Type | Main Breaker |
| Load Center Mounting Type | Flush,Surface |
| Load center width (in.) | 14.38 |
